Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P

Minimum Order: $20 (equipment), $100 (crystals)

Low stock: 2 left

$3,798.00 USD
$3,798.00 USD
Sale Email for Lead Time

SKU:  MSK112A-P

View full details

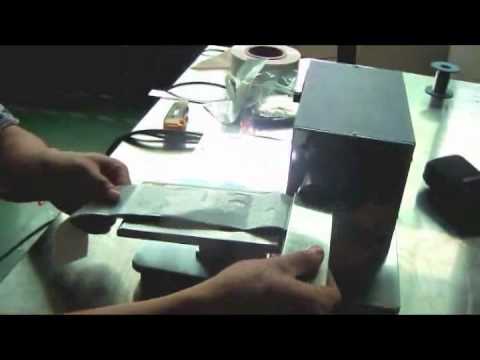

MSK-112A-P is a CE Certified semi-automatic winder for winding electrodes and separators together in the research of Li-ion pouch batteries.

SPECIFICATIONS:

Winding Speed
  • 0-250 RPM Adjustable
Winding Blade
  • Dimensions: 110 mm(L) x 43mm(W), specially designed for winding pouch cells
  • The winding width depends on the width of the winding blade. Customized width and length is available upon request at the extra cost
  •
Voltage
  • Power input for the winding machine: 24VDC
  • 100 - 240VAC (50/60Hz) to 24VDC NRTL certified power adapter is included for worldwide use
Power
  • 25W
Winding mode
  • Switchable between clockwise and counterclockwise
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes

1. If you need a machine for pouch cells only, please choose option 1 from the Personalization above
2. If you need a machine for both cylinder cells and pouch cells, please choose option 2 from Personalization above. (Please click the pictures below for cylinder cell winding blade)
3. You may also choose MSK-112A-C for cylindrical battery core winding


STANDARD PACKAGE:

Item Description Qty
1 Winding machine (main machine) with two control pedals and power cord 1
2 43mm width winding flat center plate 1 sets
×

Dimensions info:

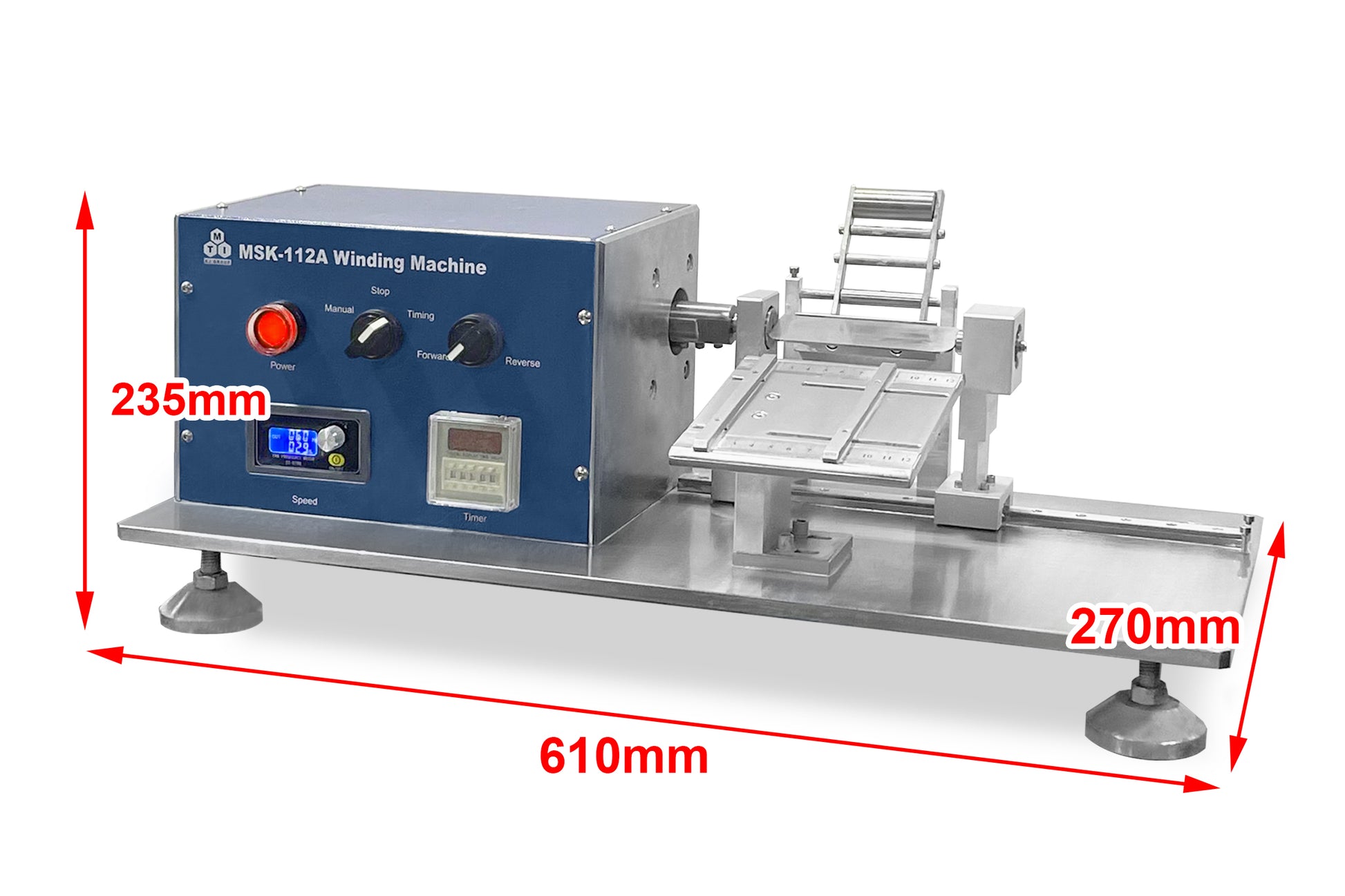

Dimension: 610mm x 270mm x 235mm (L x W x H)

Net Weight:50 lbs

MTI offers a One-Year limited warranty for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
