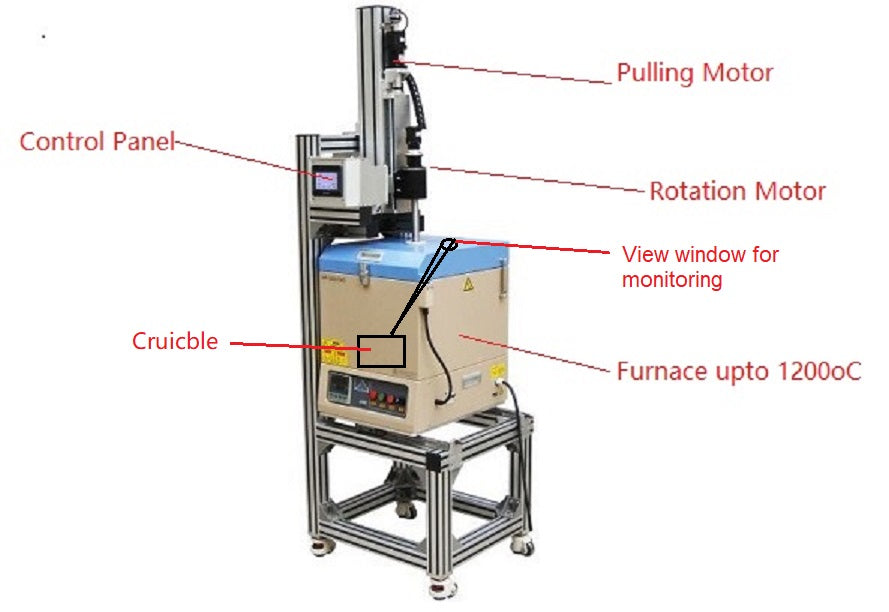

VTF-1200X-TSSG is a top seed solution growth (TSSG) furnace for growing various single crystals via flux solution. The furnace consists of high-quality alumina fiber brick with a chamber of 9.5" Diameter x 8.6 " high and can be used up to 1200ºC. The Precision digital temperature controller with 30 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour.
Furnace construction

|
- Double shell steel casing with a cooling fan to keep a low surface temperature
- High-purity alumina fiber insulation and liner for max. energy saving
- Inside Chamber Size of furnace
- 9.5" Diameter x 8.6 " high (9 Liter)
- The furnace is slidable on the frame for easy sample loading and unloading
- Quartz window is available upon request
|
|
Working Temperature
|
- Max. Working Temperature: 1250ºC (< 30 minute)
- Standard Working Temperature: 1150ºC (continuous)
|
|
Control Panel
|
- PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod
- Temp. Controller: 8 steps programmable and auto PID control with +/- 0.1ºC accuracy (Eurotherm 3000 inside)
- Heating Rate 0~10ºC / min (suggestion at =< 5ºC)
- Pulling Speed: 0.5-50mm/h adjustable
- Downward speed: 50 mm/minute fixed
- The rotation speed of the pulling rod: 0.1-23 RPM adjustable
|
|
Pulling Range
|
|
|
Power
|
- AC 220V Single Phase
- 4.0 KW
|
|
Power Cable & Plug
|
- 10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. Extra length cable can be ordered by clicking the picture below
- The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.

|
|
Furnace Dimension
|
 Please click the picture to review
|
|
Warranty
|
- One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement in the related products below.)
|
|
Compliance
|
- CE Certified
- NRTL(UL61010) or CSA certification is available upon request at extra cost.
|
