YAlO3 (101) 5x5x0.5mm, 1 side polished
YAlO3 (101) 5x5x0.5mm, 1 side polished
Minimum Order: $20 (equipment), $100 (crystals)
Shipping and handling will be applied
60 in stock
SKU: : \YAd050505S1
Couldn't load pickup availability

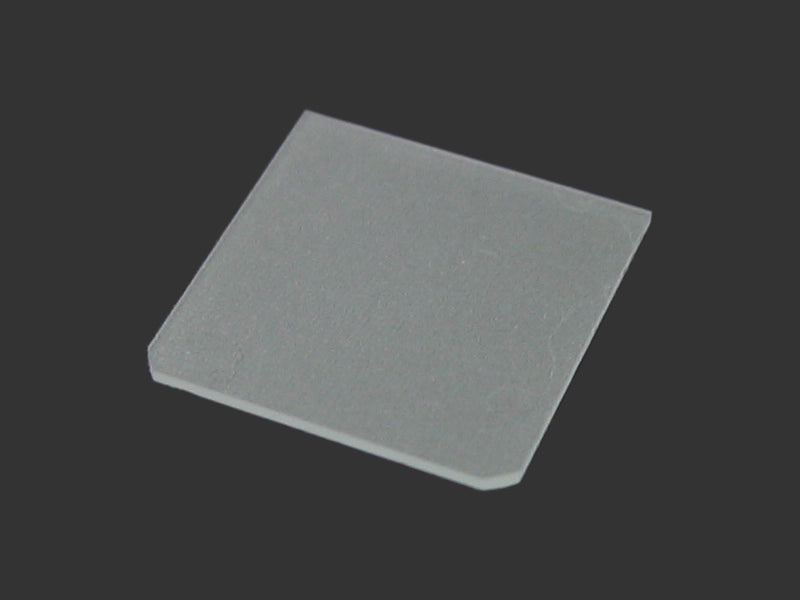

Single crystal: YAlO3
Substrate Size: 5mm x 5mm x 0.5mm
Orientation: (101)+/-0.5 o ( Please pay attention order of lattice constant as the table below )
Polished: one side polished
Surface Roughness: < 5A
Packing: 1000 class clean room and bag
YAlO3 is excellent substrate for HTS film and II-V nitride , as well as many oxide films due to its chemcial stability and lattice matching.
|
Structure |
Lattice (A) |
Melting Point |
Density g/cc |
Dielectric Constant |
Thermo-Expans x10-6/K |
Max. Xtl Size |
|
Orthor. |
a=5.3286(4) b=7.3706(5) c=5.1796(3) |
1870 0C |
4.88 |
16-20 |
2-10 |
30d x 50mm |
