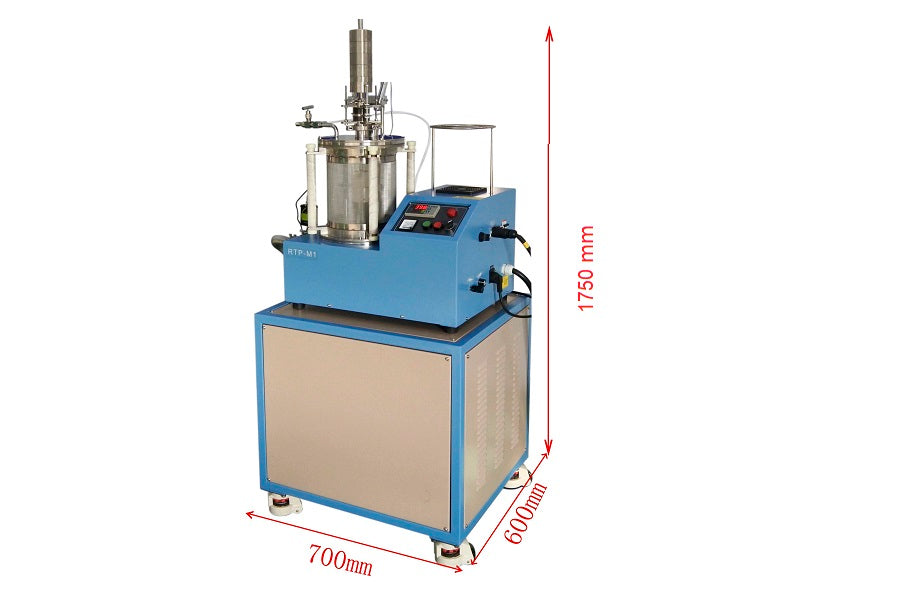

RTP-M1 is an Ultrafast thermal Pressing Furnace ( UFTP) ) with a heating speed of more than 200 °C/minute, heating rate up to 2900°C under the selectable deadweight and controlled atmosphere. It is a cost-effective tool to study material properties under fast over-heated conditions. It also can be used as an RTP annealing furnace or modifed into a CSS film coater
SPECIFICATIONS:
|
|
- 6" Quartz tube and SS flange as atmosphere control chamber with a vacuum level of 10x10-5 torr. ( inside gold coating is optional for better heating reflection.
- Two tungsten foil or graphite foil disks as the heating element can reach 2900°Cmax. rapidly under low voltage and high current.
- The gap between the two foils is adjustable for various sample thicknesses
- The vacuum-sealed deadweight can be applied to the sample for hot pressing
- IR temperature sensor and the display are available as an option at an extra cost.
|
|
Furnace Power
|
- 208 - 240 VAC, 50/60Hz, three phase
- 20 kW transformer with output of 20VDC to the heater
- Max. current: : 500A (DC)
|
|
Heating Elements and Pressing Die
|
|
|
Max. Operating Temperature
|
- 2900°C Max.
- 30 seconds Max.
|
|
Max. Heating Rate
|
|
|
Pressure
|
- Several dead weights are included to apply pressure during heating
- 10Kg Max
- Electric motor with digital pressure sensor is available up to 100Kg at the extra cost
|
|
Sample size
|
- Max. 35 mm diameter x 1.0 mm thickness
- You may process multi-samples at the same time for hi-though research
|
Temperature Control
|
- There are two heating modes with digital IR temperature senor
- (1) Manual heating with IR temperature display to achieve max heating rate ( ~ 200oC/S)
- (2) Programmable temperature control by IR sensor and digital display
|
Vacuum chamber
|
- High Purity quartz with dimensions:
- O.D. 216mm, I.D.: 206mm
- Length: 300mm
- SS flanges are built-in on the top and bottom with gas inlet and outlet valve and KF 25 port for vacuum pump
- Vacuum level 10-2 torr by mechanical pump and 10-5 by turbopump
- The digital vacuum gauge is included, and the vacuum pump is optional

|
Pressure
|
- Vacuum sealed and a movable rod is installed on the top flange.
- Two ceramic plates will press on the heating foils, where the sample is located between two heating foils.
- Deadweight with 1000 g each will be adding the rod and applying the pressure to the sample.
- 10 pcs deadweight pieces are included for a total of 10 kg weight
- An electric motor-driven pressure mechanism is available upon request at the extra cost.
|
|
Compliance
|
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
Water Chiller (Optional)
|
- Recirculating water is required but not included. Please order the KJ5000 separately.
- Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow, 2.8K BTU/hr - EQ-KJ5000
|
