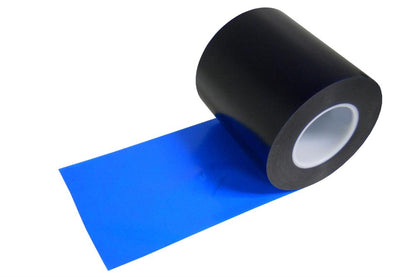

Blue Adhesive Plastic Film (PVC) for 6" Width, 10 feet/ package - ECO-519-LD

Minimum Order: $20 (equipment), $100 (crystals)

Shipping and handling will be applied

Low stock: 5 left

$29.50 USD

Sale Email for Lead Time

SKU: : \ECO519

Product variants

Quantity

View full details

EQ-ECO-519-LD is a High strength adhesive film on one side for bonding wafer (up to 6" Dia.) or thin substrate (< 2.0 mm thickness) to vacuum chuck of VTC-50, VTC-100, VTC-200, and wafer dicing
Click here for SDS

SPECIFICATIONS:

Width	6.0"
Thickness	125μm
Length	Price sold by 10 feet per quantity
Item	It is the consumable part, replace the gasket each time assembly. It may cause a leak when reusing.
Application case	Programmable Hi-Speed Spin Coater (10K rpm & 5" max) with Vacuum Chucks (Optional Heating Cover) - VTC-100PA

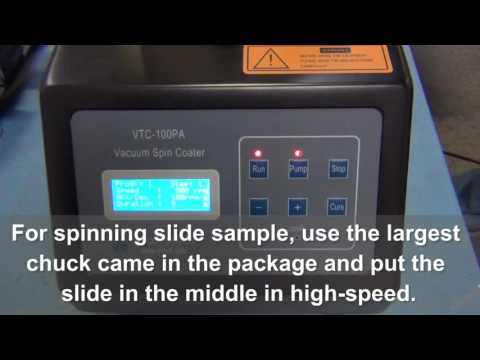

Application case	The tape can hold a rectangular/ square slide at 10000 RPM, in high-speed mode, there is two things need to do. Do not reuse the tape Use the largest chuck, a vacuum chuck with the diameter of 4 inch or larger is recommend. Put the tape and the sample on the very middle of the vacuum chuck.
Application Notes
