Chamber Material & Size

• Materials: High strength steel (A3 steel) with a thickness of 5 mm
• Material yield strength: 235 MPa
• Inside (L × W × H): 500 mm × 500mm × 500mm

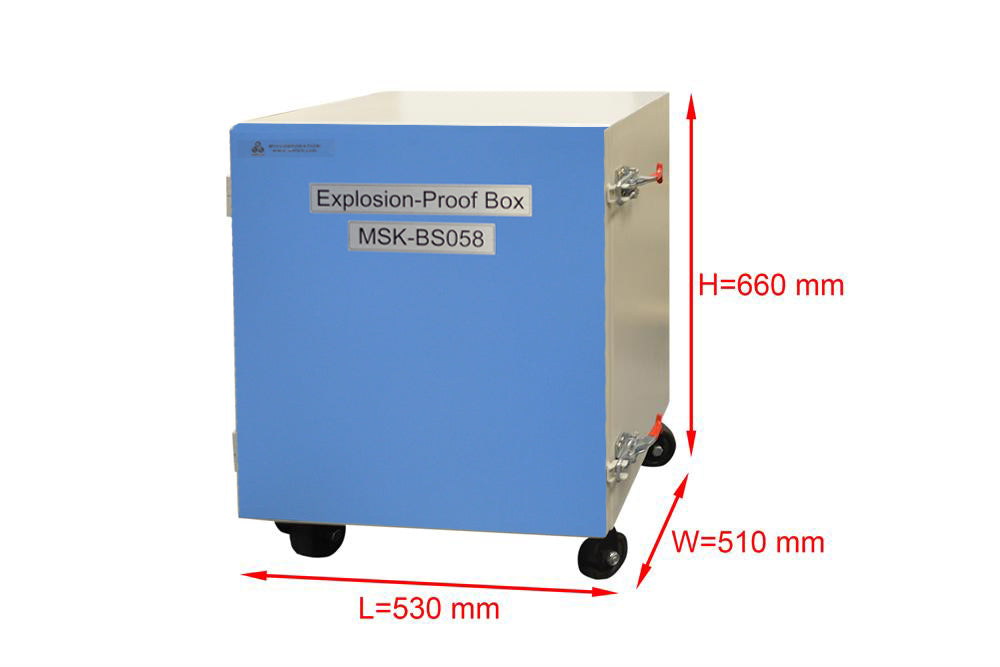

• Outside (L × W × H): 530 mm × 510mm × 660mm
• Anti-fire base: 10 mm thick bakelite plate
• Maximum Dimension with door opened: 1080mm

• Note: The max. capacity of Li-Ion batteries to be tested in the chamber should be limited to 3.8V @150Ah for single-cell  or  570Wh for battery pack without protection circus

Feedthrough

• 4 rectangular ports (75 × 35mm) at the back of chamber as electric feedthrough

Mobility

• Four trolley wheels are installed at the bottom box for easy moving

Application

• Ideal explosion-proof box with two Latch-Action Toggle Clamps for the high power rechargeable battery testing



Shipping Weight & Dimensions

• 235 lbs; 48" x 40" x 36"

Warranty

• Three Years Limited Warranty
