200T Electric Hydraulic Press with Digital Display - YLJ-200E

200T Electric Hydraulic Press with Digital Display - YLJ-200E

Low stock: 2 left

Price: RFQ

SKU: YLJ200E

Choose your Variant:



View full details

YLJ-200E is an electric hydraulic pressing machine up to 200 metric tons for preparing compound or ceramic samples faster and easier. YLJ-100E has a built-in electric hydraulic pump which is driven by an electric oil pump with a digital pressure display. It is an excellent tool for material/ceramic/chemistry laboratories to make a larger pellet sample.

SPECIFICATIONS:

Pressure
  • Max. 200 Metric Tons
  • Digital pressure display (unit KN)
  • 10 - 200T adjusted by manual ON/OFF valve
  • Display real pressure on the sample based on die size
  • Pressure accuracy: +/- 1% by adjusting hydraulic oil valve
  • Max. force 2030 KN, e.g 205T release protection
  • The mini printer is built-in to calculate the pressure per sample area
Pressure Controller
  • Digital control panel to set up sample diameter and display real force.
  • The mini printer is built to displace real pressure
Electric Hydraulic Pump
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 20 mm
  • Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height
  • 310 mm
Working Space
  • Max opening: 250 L x 300 W x 300 H, mm
  • Diameter of top & bottom platform: 300 mm
Press Cover
  • A metal door with a magnetic door latch
  • Note: For safety, please close the door before operating
Application Notes
  • Check the Oil Level Regularly. Add AW 46 Hydraulic Oil if the Oil Level is low
  • Do not raise the bottom cylinder (piston) more than it's maximum traveling distance (20 mm)
  • Warning: Customers must always wear protective goggles during operation !!!
  • Please shut the oil release valve and oil drain for transportation or long term idle
  • Operating the pressor inside the glove box is not recommended
Compliance

  • CE Certified
  • NRTL (UL or CSA) Certification is available upon request at an extra cost ( Isolation transformer will add on)
Pellet Press Dies (optional) &CIP die

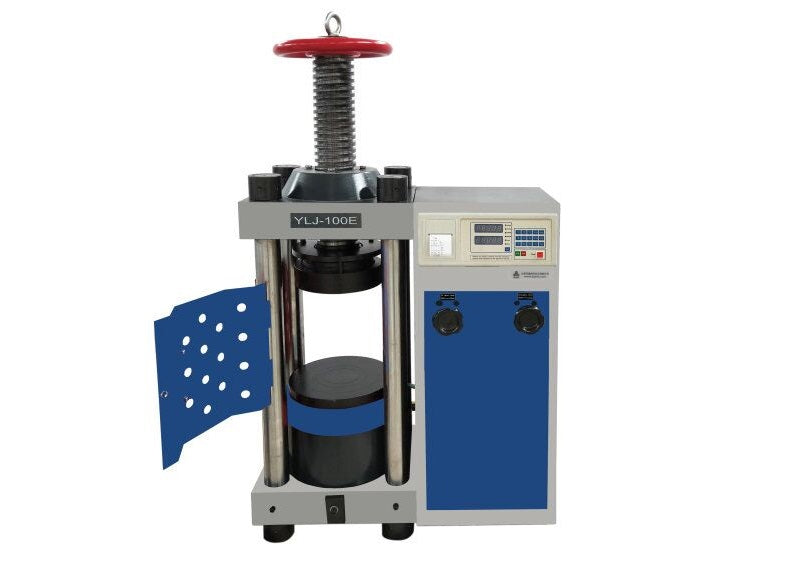

    Pic. 2

Operation Instructions



×

Dimension:

  • 800mm (L) X 500mm(W) X 1200mm (H)

Net Weight:

  • 520 Kg

Shipping:

  • Shipping Dimension: 45" L x 25" W x 60" H
  • Shipping Weight: 1600 lbs

MTI offers a One-Year limited warranty with lifetime support(may cause a fee) for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts such as O-rings, crucibles, screws, washers, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
