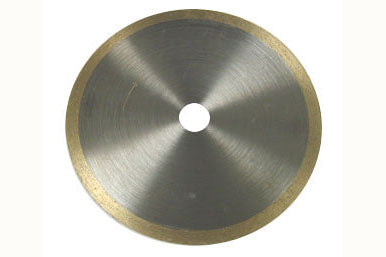

4" Dia x 0.017"(0.45 mm) T x 0.5" Arbor Edge-Sintered Diamond Blade - DB153742
4" Dia x 0.017"(0.45 mm) T x 0.5" Arbor Edge-Sintered Diamond Blade - DB153742
Minimum Order: $20 (equipment), $100 (crystals)
19 in stock
SKU: : \DB153742
Couldn't load pickup availability
Professional-grade blades with the continuous rim are designed for lapidary materials. The edge-sintered diamond blade (4" x 0.017" x 0.5") produces a smooth and efficient cut for rare and valuable materials with minimum material loss. Such professional-grade diamond blades last longer and cut faster than ordinary notched-rim or plated-diamond blades.
SPECIFICATIONS:
| Part Number |
EQ-DB-153742-LD |
| Blade Diameter |
4" |
| Blade Thickness |
0.017" (0.45mm) with a tolerance +/- 0.05 mm |
| Center hole |
0.5" |
| Diamond particle grit | 240 mesh (52 microns) |
| Optional |
The 4" sintered diamond blade is the replacement for SYJ-150 Low Speed Cutting Saw. For finer cutting, please choose the 280 mesh diamond blade) |
| Note |
You need dressing the blade from time to time to keep blade sharp. Please click the link below to order
|
