KSL-1100X-S3 is acompact hybrid furnace that offers a 4"x4"x4" heating chamber to sinter samples in air, and three 16mm ID quartz tubes to process samples under high vacuum in high throughput. it is an ideal furnace for preparing various samples in small quantities up to 1000oC under a controlled atmosphere. In addition. the compact furnace can be placed into a glove box. It is an ideal furnace to explore the material for solid-state electrolyzing and new-generation superconductors
SPECIFICATIONS:
|
Furnace Construction
|
- High-purity fibrous alumina insulation for maximum energy saving
- Drop-down door for easy and safe sample loading as muffle furnace
- Three 20 mm dia. holes are opened in front of the door used as a 3-tube furnace:
- Three quartz tubes ( 20ODx16IDx200L mm) are included to insert inside the muffle furnace
- Three sets of quartz blocks, KF16 adapters, needle valves, and 1/4" tube fitting are included
- Three thermal blocks are included to work as a standard muffle furnace.
|
|
Quartz Tube & Flange
|
- Three sets of One-end closed quartz tubes ( 20mm O.D. x 15.9mm I.D.x 200L ) ( Click Pic. 1 to order more)
- Three sets of SS flange to achieve vacuum ( 10e-5 torr by turbo-pump) ( Pic. 2)
- Three sets of KF16 adaptors with needle valves and 1/4" tube fitting (Pic. 3 )
- Three quartz blocks ( 15 mm dia. ) shall be placed inside of the tube to block heat radiation
 Pic. 1  Pic. 2  Pic.3  Pic.4
|
|
Heating Chamber Size
|
- Size: 4"x4"x4" or 100x100x100 mm
- Capacity: 65 cubic-inch or 1 liter
-
Click on the pictureto see the chamber size
|
|
| Power |
- 110V version: 950 W (Power cord is included)
- 220V version: 1.2KW (Power cord is not included)
|
|
Operating Temperature
|
- 1000°C max for an hour
- 900 °C for continuous operation
|
|
Max. Heating Rate
|
|
| Temperature Controller |
- PID automatic control and auto-tune function
- 30 programmable segments for precise control
- Built-in protection for the over-heating and broken thermocouple
- Large digital control panel (48 x 96 mm) for easy operation
- Temperature accuracy: +/- 1 °C
- Thermocouple: K type
|
|
Optional
|
- Two 8 mm diameter barbed fittings (gas inlet and outlet) (see pic on the left) at the back of the furnace panelare available at extra cost ($99 for both connectors). Check the option box
- Note: Self-Installation is required. The open barb holes and threaded holes will be ready
|
|
Compliance
|
- CE Certified
- NRTL (UL61010) or CSA certification is available at extra cost.
- A protective cover and a fan will be installed on the furnace with NRTL Certification, please click the picture on the left for more detail.
|
|
Warnings
|
- Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put the furnace into the fume hood for better safety (Click Pic.1)
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
|

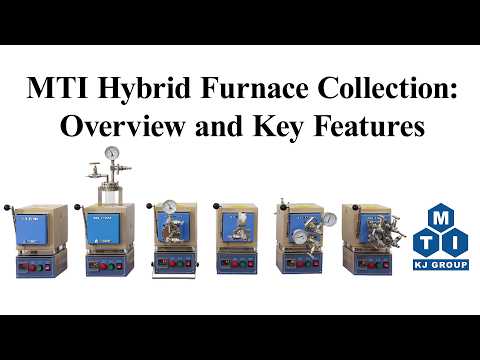

| Operation Video |
|
Pic. 2
Pic.3
