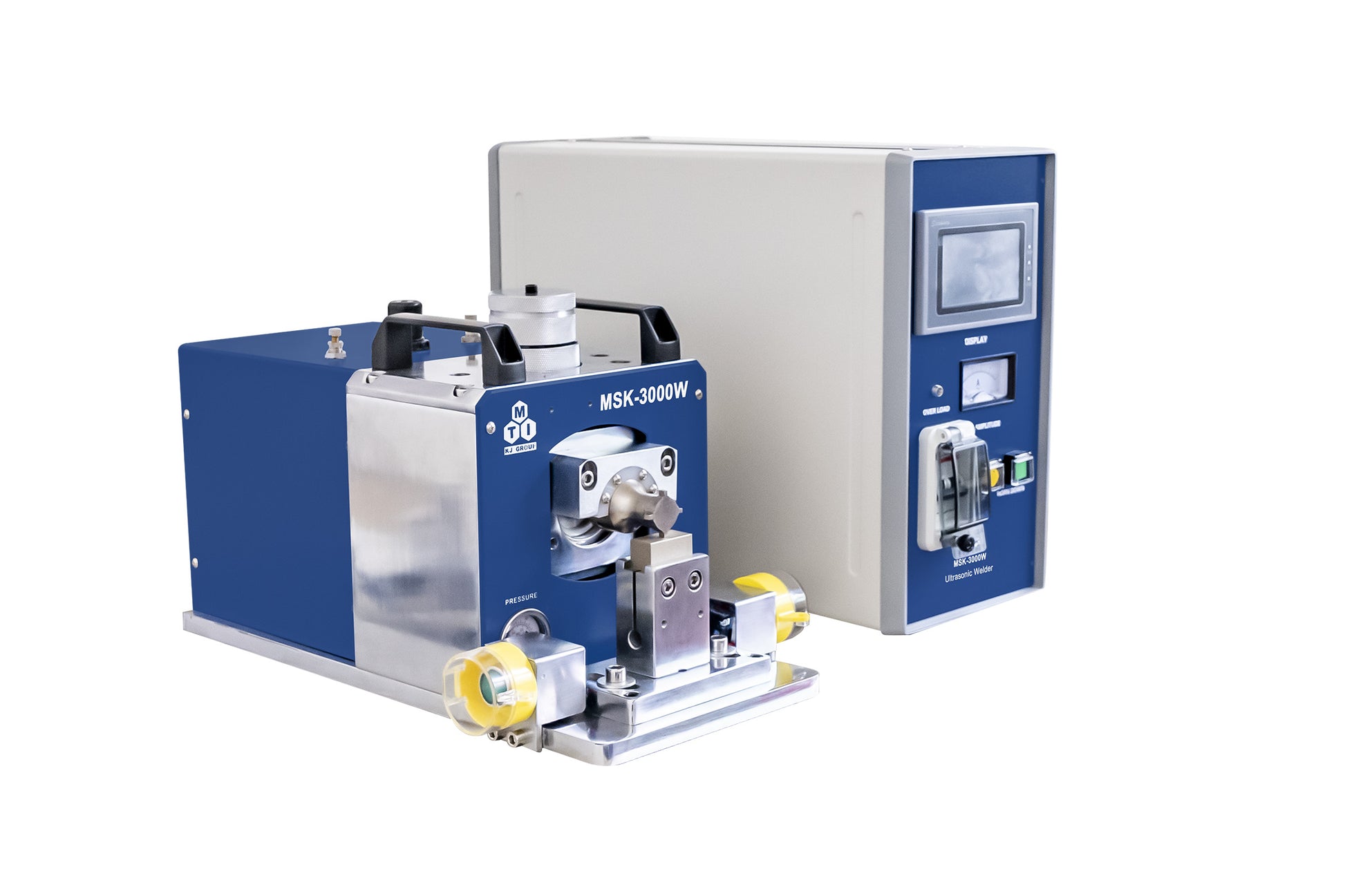

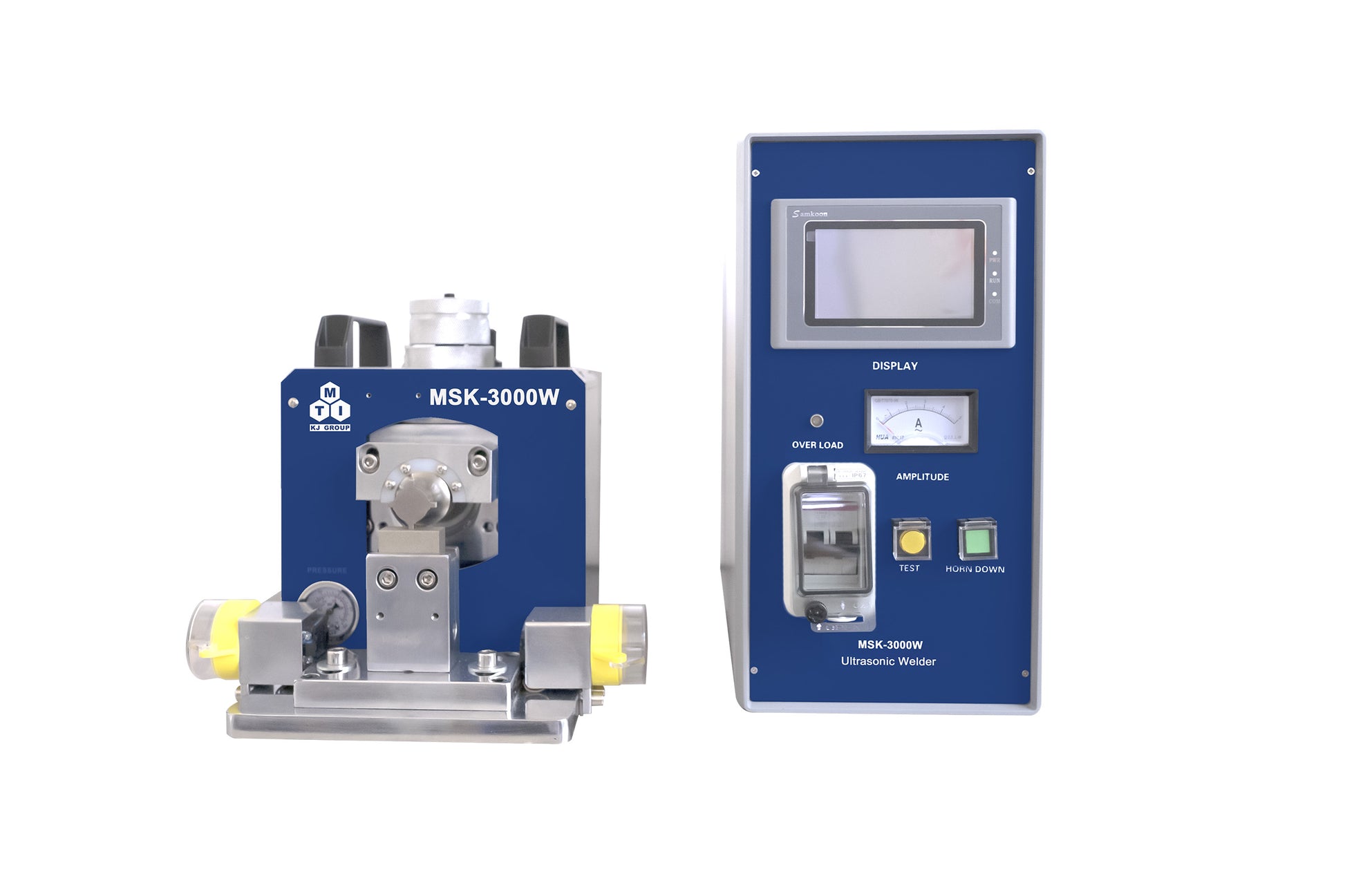

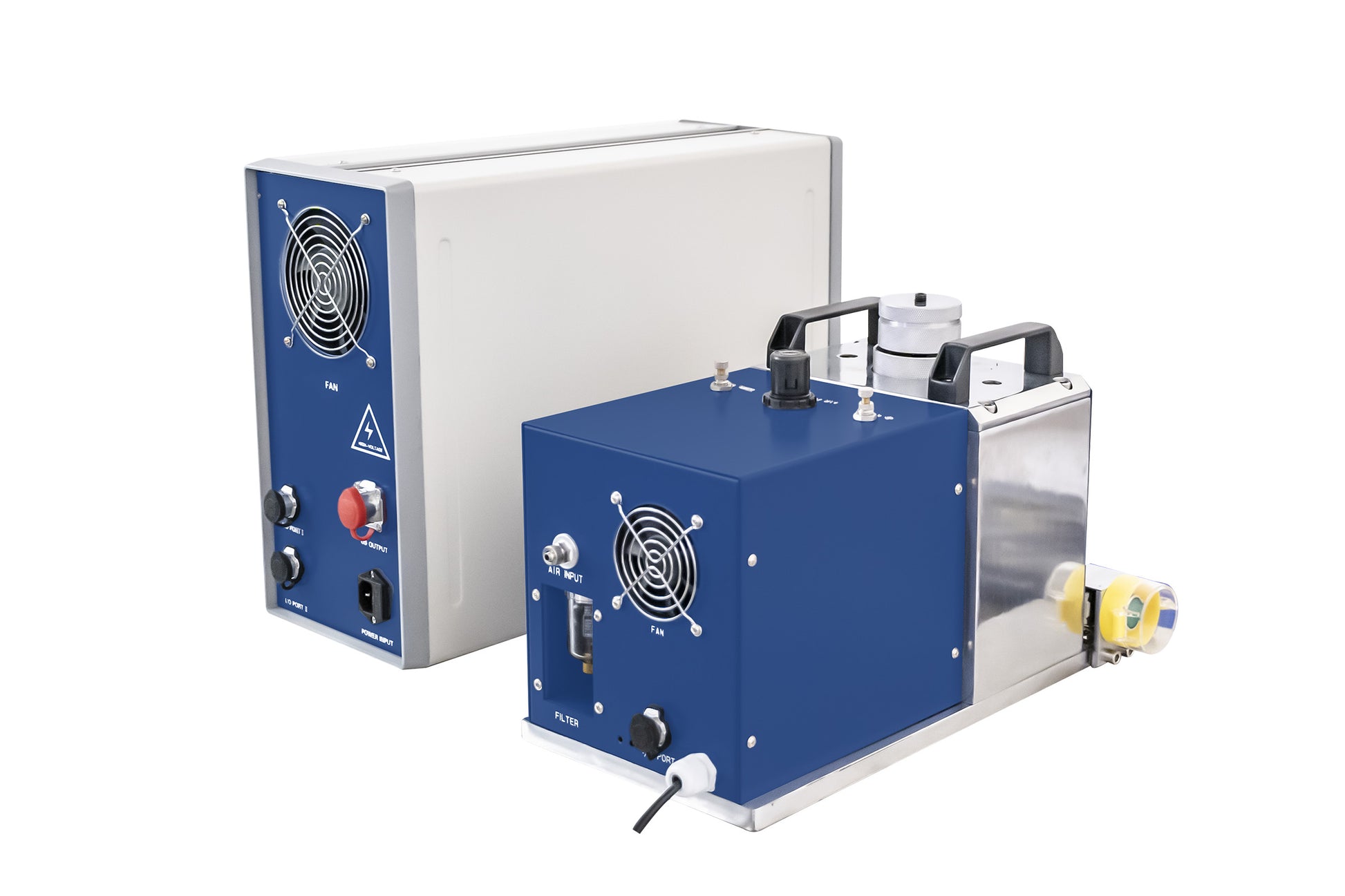

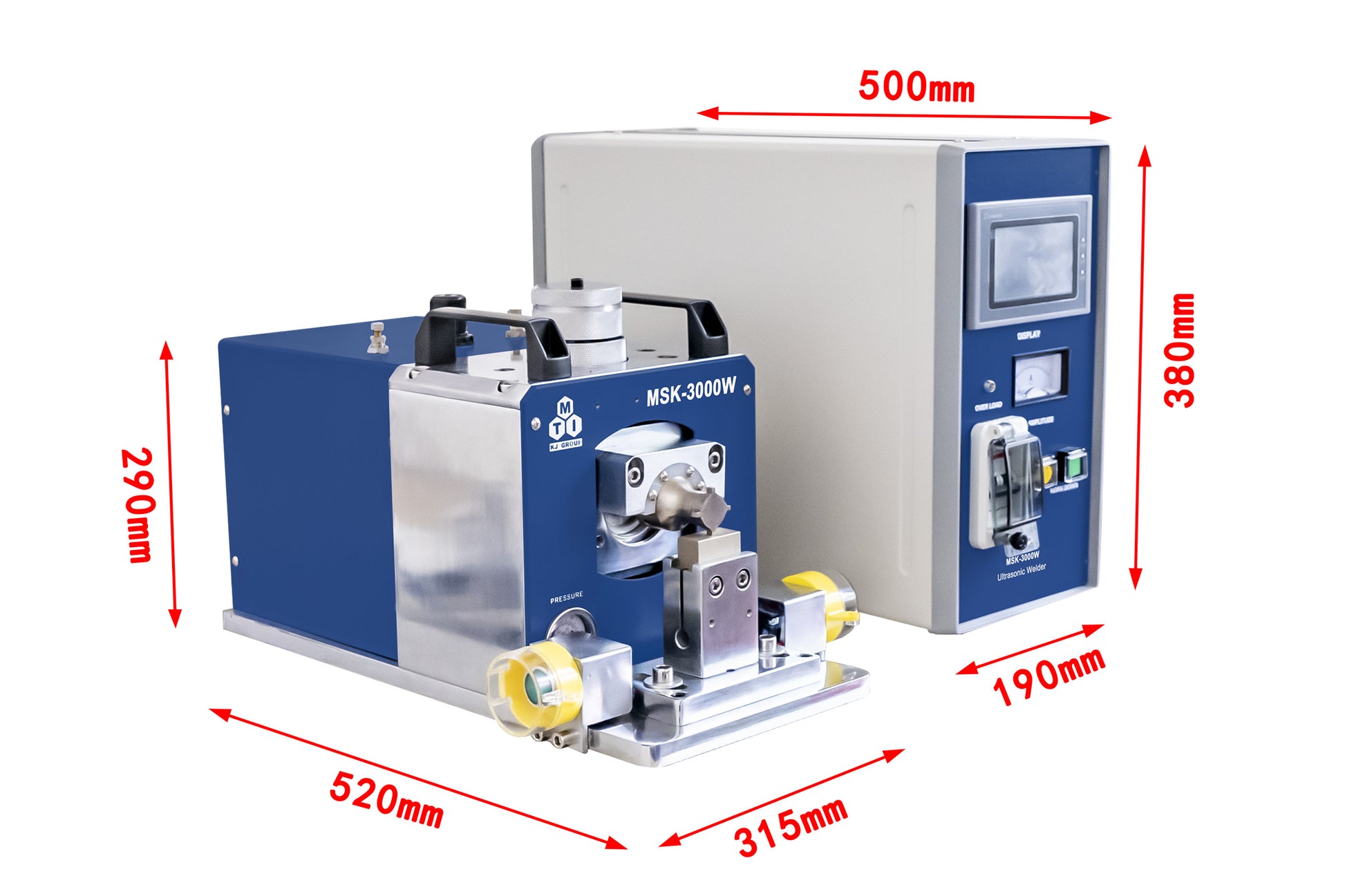

MSK-3000W is a CE Certified ultrasonic metal welder with a color touch-screen controller. It is designed for welding stacked thick electrode sheets (Copper, Aluminum, or Nickle) and tabs onto current collectors to prepare Li-ion pouch cells in R&D laboratories.
If the machine is operated in Ar gas condition please consider MSK-3000W-AR. See application notes and select them in the optional bar.
MTI has granted the patent 201920351987.X for the Ultrasonic Tab Welding Machine since November 2019.
SPECIFICATIONS:
Features |
- Welding time (0.01 s - 0.5 s adjustable), delay time, welding layers...adjustable, click Pic. "Program Setup Interface" to see details.
- Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...);
- Up to four recipes can be stored in the Al or Cu welding programs.
- Amp meter provides instant monitoring of the welding current
|
| Input Voltage |
- AC 110V or 220V +/-10%, 50/60Hz (Please select in the product options bar)
|
| Max. Power Consumption |
- Input power: 850W
- Output power of ultrasonic: 3000W (Max 40 layers)
- (Please email us to VIEW 4200W version to weld MAX 50 layers)
-
|
| Welding Area |
|
| Fixture (Optional) |
- The fixture is available as request. The default fixture size is for 4662 pouch cell. The pouch cell size should be given if customer need a customized fixture.
|
| Welding Head |
- One set of the welding head and base is pre-installed for welding both aluminum & copper current collectors from 1 to 40 layers
- Pouch cell battery pack: 4 layers of nickel with 0.23 mm thickness; 4 layers of aluminum of aluminum with 0.23 mm thickness
- Pouch cell battery cell: 40 layers of copper with 9 um thickness; 40 layers of aluminum of aluminum with 15 um thickness
- Three head and single long welding head available for high throughput welding for both aluminum and copper current collectors. Please click here for more options.
|
| Ultrasonic Frequency |
|
Pneumatic Control (Not included)
|
|
KF40 Feedthrough (Not included for non-AR version)
|
- A modified version MSK-3000W-AR can be safely used in the Ar gas condition.
- Please order the modified version MSK-3000W-AR ( with Feedthrough included) to use in the glove box.
|
| Compliance |
|
| Application Note |
- The MSK-3000W ultrasonic welder can't be used in the Ar gas condition because electric arc occurs during the process. Use N2 gas if needed.
- Nickel and Aluminum Tabs can be welded onto different types of current collecting substrates (Aluminum or Copper) when making battery electrodes.
- A modified version MSK-3000W-AR can be safely used in the Ar gas condition. KF-40 feedthrough is provided which separates the control unit from the glovebox (only welding unit is inside the glovebox) and delivers the operating gas from the gas cylinder (or air compressor) outside the glovebox to the welding unit inside the glove box. Please contact us for the quote of MSK-3000W-AR in advance if the Ar gas operating atmosphere will be considered.
- The compact design enables the operation inside the glove box with an Ar atmosphere where Lithium-Sulfur, Lithium Solid-State, or Li-ion half cell will be assembled. Please click the images in below to understand these technologies and how it fits in a glove box.
|
