• 110 VAC 60Hz/ 240VAC 50 Hz

• 5000-16000 rpm

• Spin speed: 50-3000 rpm
• Workpiece Diameter: Φ46 mm
• Workpiece length: 100 mm

Cutting Dics

• 2" Metal/Inox cutting disc for 4680 and 46110 cylindrical case
• 3" Fiber cutting disc for 18650, 21700, 26650 cylindrical cases
• The standard package includes 2 pcs of 2" cutting discs and 2 pcs of 3" cutting discs. Replacement discs are available for purchase.

Cylindrical Case Holder

• Compactible with 18650, 21700, 26650, 32650, and 4680, etc cells.
• Standard pakcage includes a set of cylindrical case holders for 18650, 21700, 26650 and 4680 - 46110. 4 pcs per set (different diameters)
• Replacement cylindrical case holders are available for purchase.

• A protective cover with a controlled gas inlet is included for protection.

• MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber.
•
• This machine is 12VDC device with UL certified power adaptor, so no NRTL certification is required

• 10 pcs Fiberglass Reinforced blades are included.
• Die set for cutting 18650, 21700, and 4680 cells are included
• Additional blades are available upon request.

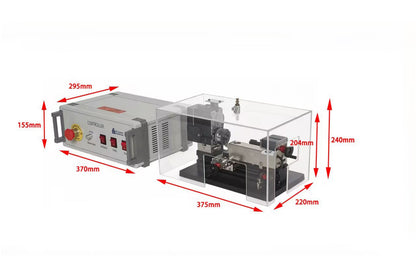

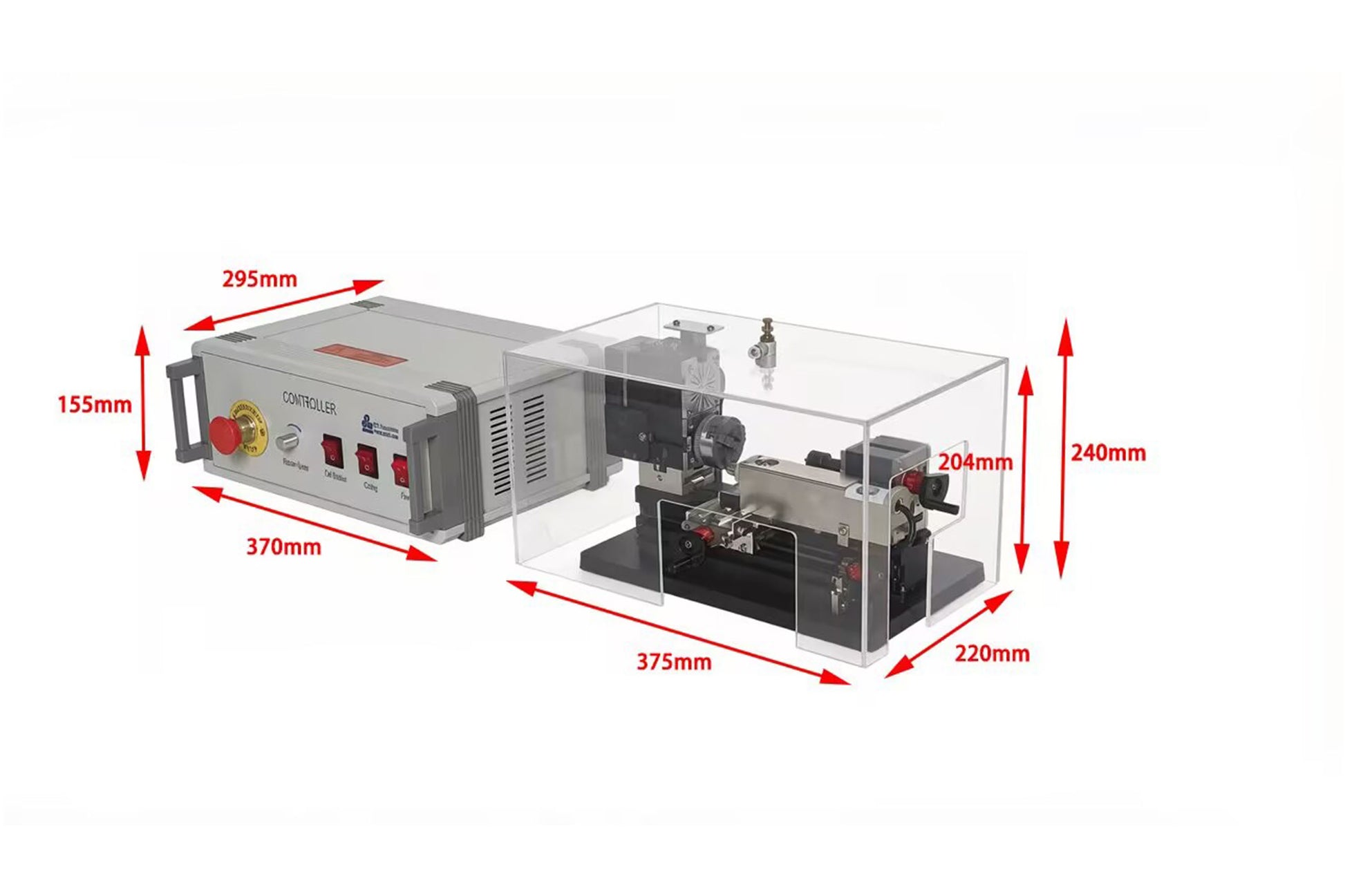

•  Cutting machine: 375 mm L x220 mm Wx240 mm H
• Control Box:           370 mm L x 295 mm W x 155 mm H

• 10 Kg

• Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.
