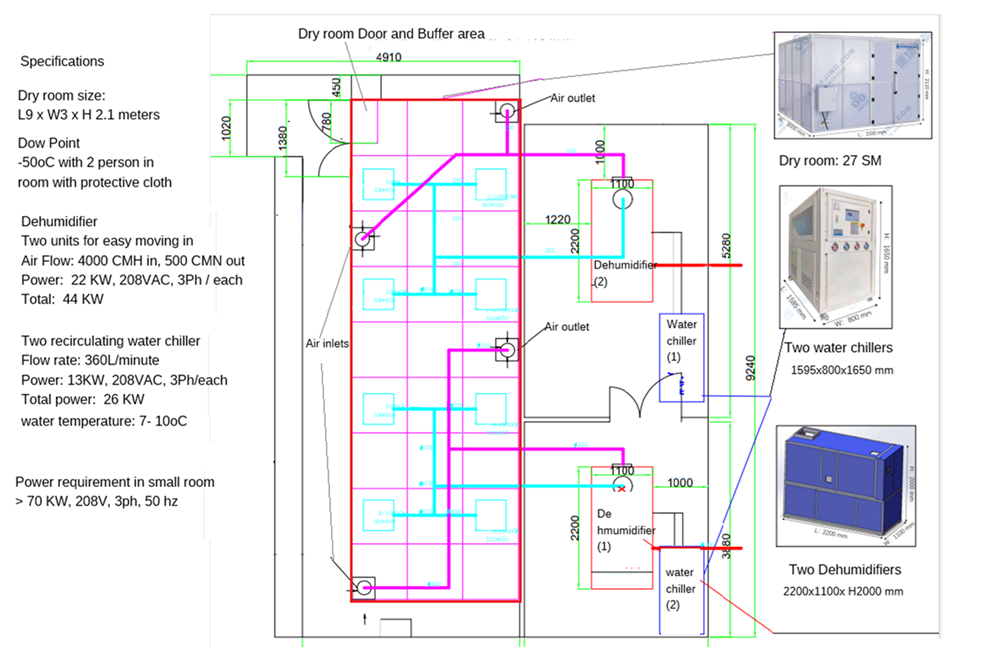

The dehumidification system MSK-ADS-4000 and the water chiller SDA-3025 are designed for a customized dry room system with a 24 square meters maximum (3m* 8m) area and a dew point < -40ºCMSK-ADS-4000 ( Max. Two persons with protective cloth). The entire pouch/cylinder battery cell line would be launched in the dry room.
SPECIFICATIONS
Features
|
- The dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse(ordered separately)
- Can be installed without a construction contractor, and moveable by yourselves
- Dew Point: -40ºC （ ~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
- 16 kW for dehumidifier / 13 kW for water chiller
- The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60%
- Flexible to choose dehumidifier and water chill for DIY your own dry room
|
|
Dry Room
|

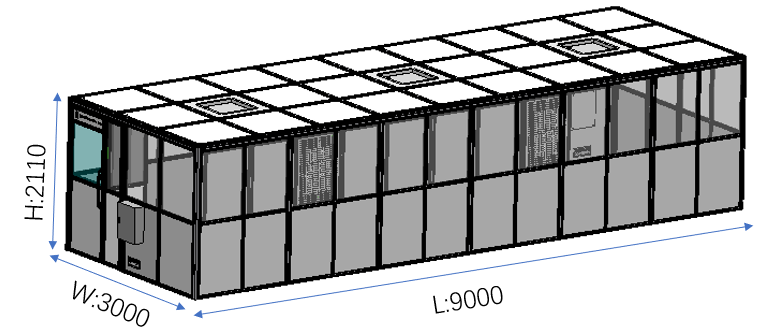

- 24 square meters or smaller dry room is available upon request ( Pic. 1)
- A greenhouse can be used to make a dry room by DIY. You can buy it from Amazon and modify it into a sealed room DIY
- Dimension: W3,000 mm x L15,000mm* x H 2,100mm
- Three gas inlet ports ( 8" diameter ) and outlet outs ( 6") are included
|

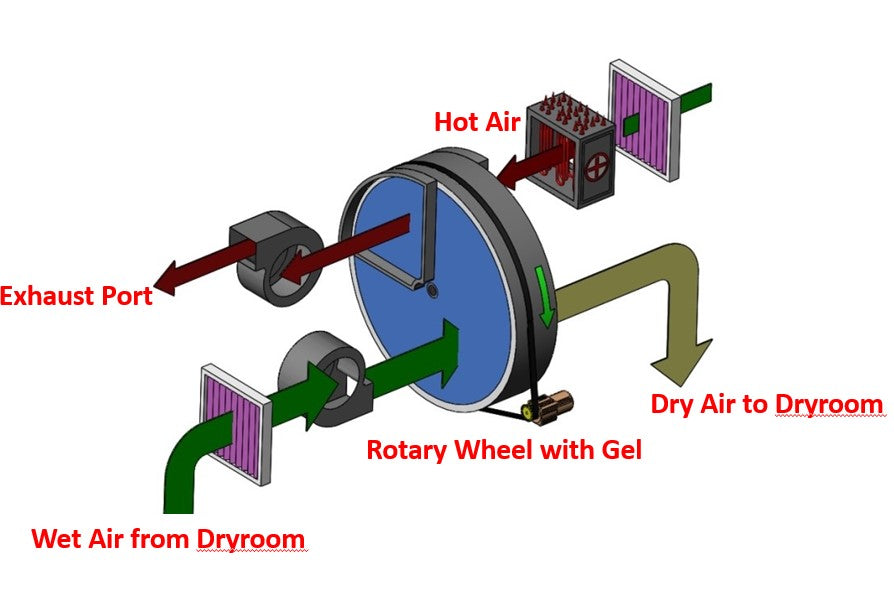

Dehumidifier
MSK-ADS-6000EP40S |
| Air flow volume: |
4,000 cmh
|
| Fresh dry die flow: |
500 cmh |
| Dew point: |
< -60 oC in empty room , < -40oC with three persons (protective cloths) within 30 minutes |
| Recirculating cooling water: |
《 7oC required |
| Power consumption: |
16 kW |
| Dimension: |
L2500mm*W1100mm*H2000mm |
| Weight： |
1800 kg |
|
Water Chiller
SDA- 1015
|
One recirculating water chiller is included
| Refrigerating capacity： |
38786 Kcal/h（45kw） |
| Water flow rate: |
200 liter/minute |
| Temperature range: |
5 - 35oC adjustable |
| Water pipe： |
2” diameter |
| Dimension： |
L1585mm*W800mm*H1650mm |
| Weight: |
~ 800Kg |
| Power Consumption: |
13 kW Max |
|
| Power requirement |
- Dehumidifier MSK-ADS-6000EP40S: AC 220 V +/- 10%, 50/60Hz, Three phases(4 wires)
- Water Chiller SDA-1015F : AC 220V, 50/60 Hz, Three phases(4 wires)
- 16 kW for dehumidifier / 13 kW for water chiller
|
| Noise level |
|
Note and Warning
|
- Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point
- Please keep the cloth inside the dry room to keep it dry.
- Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room
|
