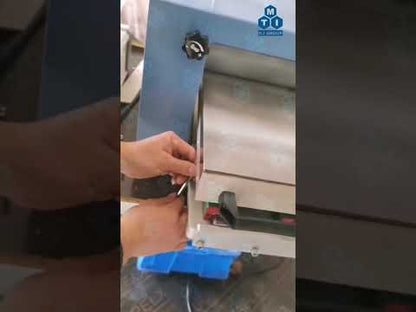

MSK-HRP-300 (updated from MSK-H2150-RP300) is a special Roll-to-Plate hot press with a working temperature of up to 200C. The hot roll drives hot pate via DC motor to achieve flat pressing, which is designed for better laminating multilayer material, also making dry electrodes for the rechargeable batteries.
SPECIFICATIONS:
| Power |
- 220VAC±10%, 50/60 Hz, Single Phase
- 2500W
|
Roller Material & Size
|
- High strength refractory steel with hardness RC > 58
- The Roller surface is plated with Cr for anti-corrosive
- Roller Size: 96 mm Dia. x 220mm W (4" D x 8"W)
- Suggested rolling width: 150 mm
- Roll line speed: 0~ 50 mm/s adjustable
- Heating power: 1200W
- Max. the temperature for the roller: 200°C
- Driving by DC motor and Ar gas compatible
|
|
Roller Gap ( Thickness )
|
|
|
Dial Gauge Accuracy
(Thickness Indicating )
|
- Dual digital micrometer heads
- Accuracy: +/- 0.005mm
|
|
Movable Hot Plate
|
- The hot plate is made of High strength refractory steel with hardness RC > 58
- Dimension: 220 mm W x 300 mm L
- The Hot plate is movable by the hot roller via friction force
- Max. working temperature: 300 oC
- Max. Rolling width on the plate: 150mm
|
Heating Temperature
|
- Two digital temperature controllers for control hot roller and hot plate separately
- 200°C suggested, and 300°C maximum
- Max Heating Rate: 4°C/minute
- Power of Heating Elements: 2500W in total
- Temperature Control Accuracy: +/-3°C
|
|
Power
|
|
|
Motor (Ar Gas Glove Box Compatible)
|
- High torque 24VDC motor with reducing gear (1:75)
- Motor power: 40W
- Rolling speed adjustable: 5~45 r/min
- Digital controlled with constant output power
|
|
Output Thickness
|
- Depending on the electrode's material and thickness, typically:
- A 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1 mm
- A 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04 mm
- A 0.33mm thick silver/gold can be pressed into a minimum thickness of 0.03 mm
- Thickness uniformity: +/- 2 microns if coating electrode thickness +/- 5 micron and each rolling increased < 10 microns
|
Compliance |
- CE Certified
- NRTL or CSA certification is available upon request at extra cost
|
| Warnings |
- Do not touch the surface of the rolling part of the machine when the rollers are heated up or running
-
You may calibrate the temperature by TC-calibrator-LD, and refer to the instruction here from time to time to ensure heating temperature accuracy
- Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared with the sheet's original thickness
|
