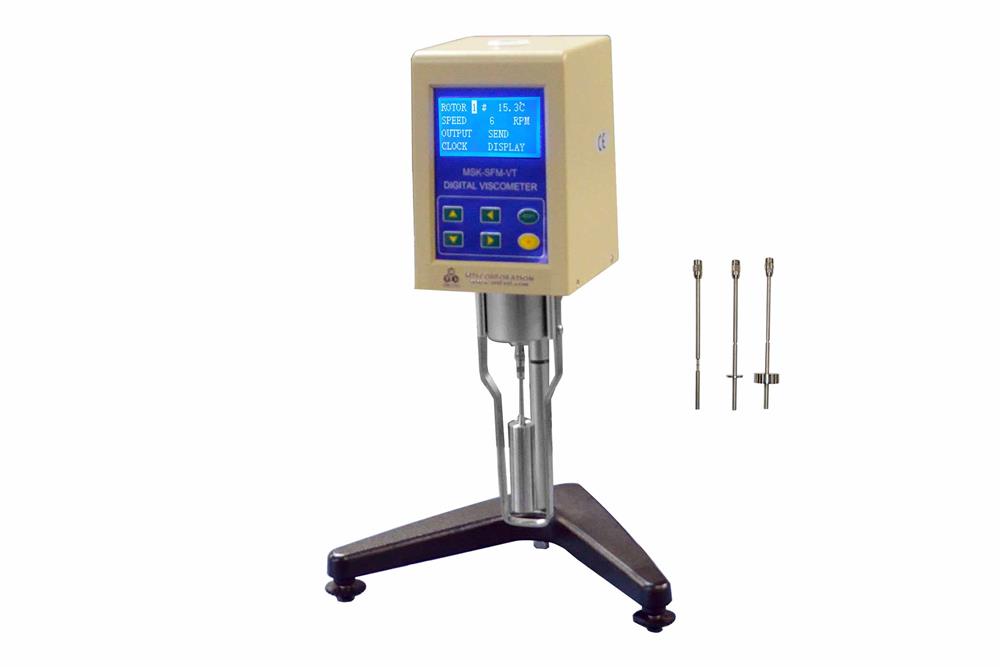

Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2

Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2

Low stock: 1 left

$1,998.00 USD
$1,998.00 USD
Sale Email for Lead Time

SKU:  MSKSFMVT2

View full details
The viscosity of battery electrode paste/slurry plays an important role during the electrode coating on a current collector, it is necessary to use a tester to monitor and then adjust the viscosity when mixing. This tester can also be used for other fluid or paste viscosity testing if within the range 10mPa·s10^5 mPa·s.

SPECIFICATIONS:


Features
  • Speed Adjustable
  • 4 Types of Testing Spindles
  • 10mPa·s ~ 10^5 mPa·s by digital display



Power
  • 12VDC
  • A 100 - 240VAC to 12VDC power adapter is included in the standard package.
Accuracy
  • ±5%Newtonian fluid)
Requirement for Experiment
  • The red arrows show the minimum height of the sample's needs. There are also marks on all the testing spindles.
  • The Minimum Requirement for the Beaker's size: Diameter > 70mm, Height >125mm
Temperature Sensor
  • An immersion probe is included for temperature measuring.
Compliance
  • CE Certified
Standard Package
  • Control Panel
  • 4 Types of Testing Spindles
  • Stand support Base/Pool
  • Temperature Probe
  • Case



×

Dimensions

  • 280mmW×230mmD×490mmH

Net Weight:

  • 2.5 kg

Shipping

  • Shipping dimension: 40" x 20" x 20" (L x W x H)
  • Shipping weight: 45 lbs
Manufacturer Part Number:
