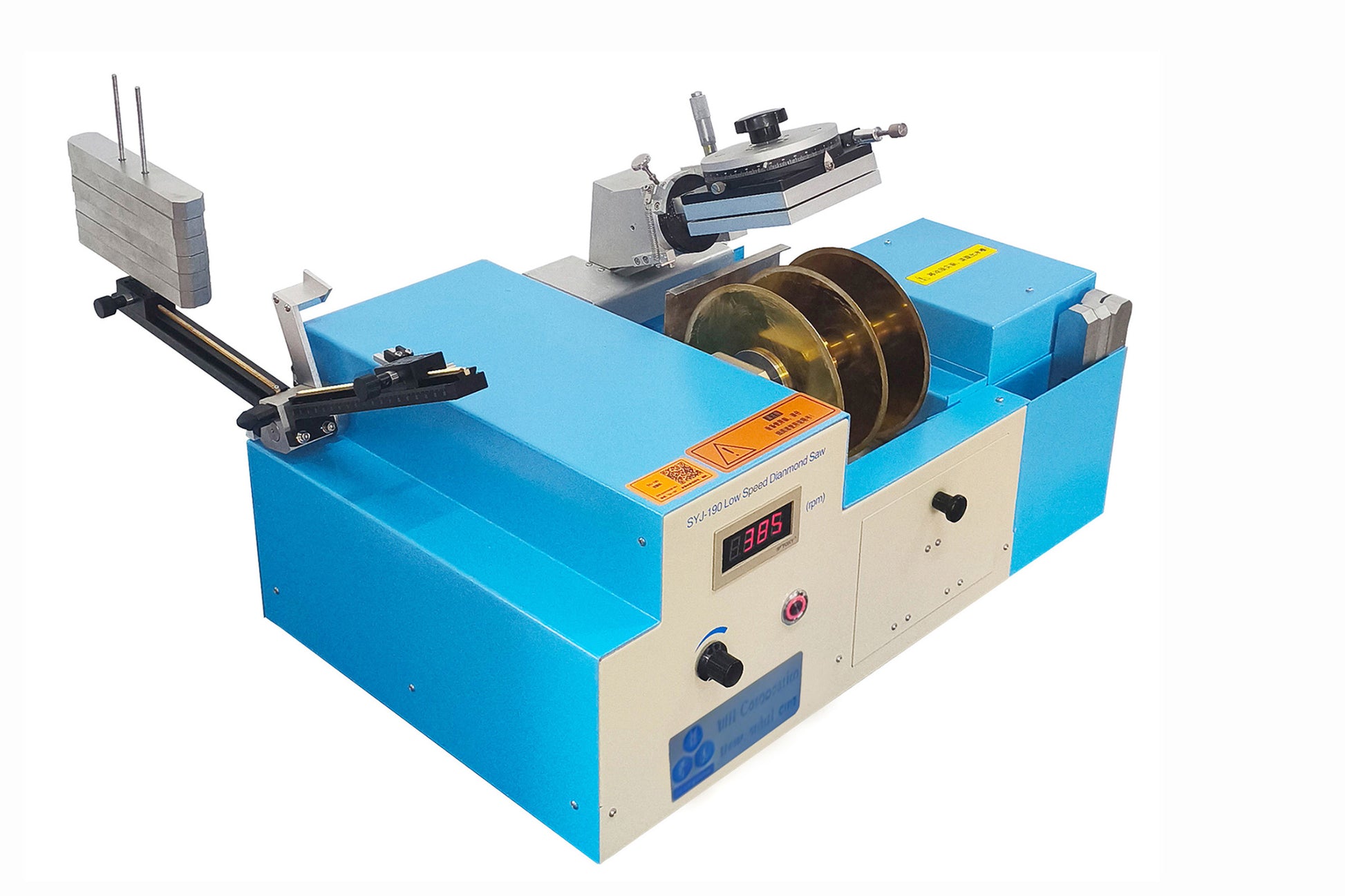

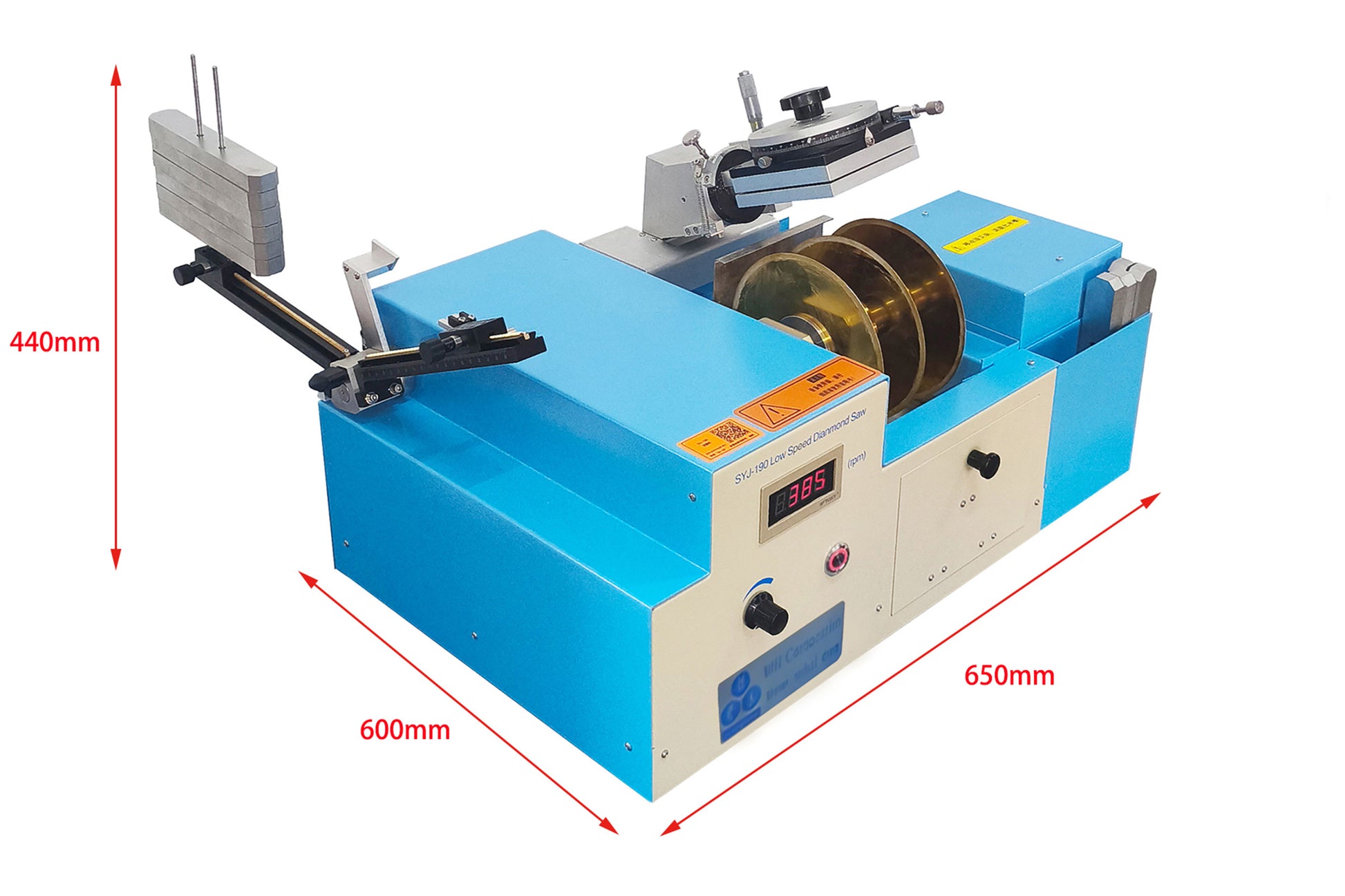

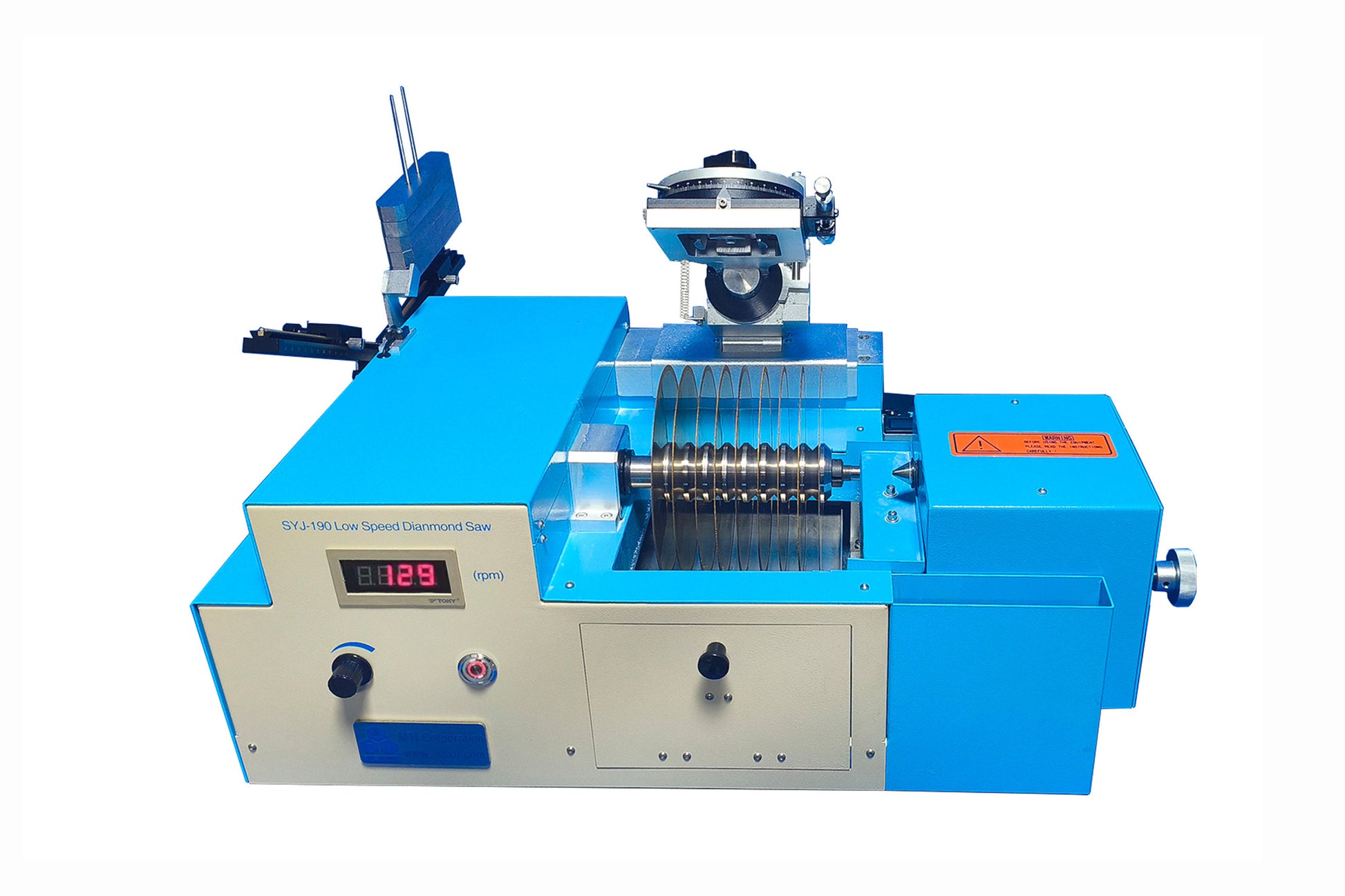

SYJ190 is a multi-blade diamond low-speed precision saw designed for dicing up to 4’ wafer samples. The equipment supports the installation of multiple cutting blades, enabling a wide range of sample materials.
The machine is equipped with a 2D tiltable and adjustable positioning stage and a digital micrometer for accurate sample alignment and positioning. During the operation, a cooling fluid system is applied to dissipate heat generated during the cutting process to minimize thermal damage of the sample.
SPECIFICATION:
| Voltage and Power |
- An NRTL certified 100-220 VAC to 24 VDC power adapter is included
- DC24V switchable for worldwide usage.
- 10A fuse equipped
- Rated Power: 225W
|
| Speed Range |
- 50 - 680 rpm, adjustable with digital display
|
| Cutting Width & Depth |
- Max. Cutting Depth: 10mm
- Cutting Width: 120mm
- Micrometer is equipped to adjust the sample travelling distance.
|
| Blades |
- 6" O.D x 0.47" I.D. x 0.6mm Arbor Impregnated Diamond Cutting Blade (2pcs) is included in the standard package.
- 6" O.D x 0.47" I.D. x 0.6mm Arbor Edge-Sintered Diamond Blade (1 pc) is included in the standard package.
- Full sintered diamond blade, SiC Arbor, Al2O3 blade are available upon request at an extra cost. Please contact MTI before making the purchase.
|
| Accessories |
- An angle adjustable sample holder is included, ±10 ° tilt angle, 360 ° horizontal rotation.
- One mini-vise is included, which can be easily mounted onto the sample holder to clamp specimens with diameter up to 4" Max.
|
| Certification |
- CE certified
- NRTL or CSA certification is available upon request at an extra cost.
|
| Application Note |
- Must apply anti-corrosion coolant during cutting to avoid rusting the screws. Please never use water as the coolant during cutting. You may select our LubeCool-150 lubricant as a coolant which will make the diamond blade cut more efficiently and prevent corrosion. Also, you can choose W10-30 motor oil as a coolant, which is available at auto store.
- Please clean the equipment after each use by using WD-40 lubricant. Ensure the X,Y, and Z axes move freely without blocking and rusting.
|
| Warning |
- Proper cutting fluid must be used during operation to prevent corrosion of machine components. The use of an oil-based coolant or Lube-Cool lubricant mixed with water is strongly recommended. Never use tap water directly as the cutting fluid.
|
