Automated 16-channel Powder Dispensing System- AM-PD16R

Automated 16-channel Powder Dispensing System- AM-PD16R

Minimum Order: $20 (equipment), $100 (crystals)

Price: RFQ

SKU:

Choose Your Variant or Type in Any Add-Ons:



View full details

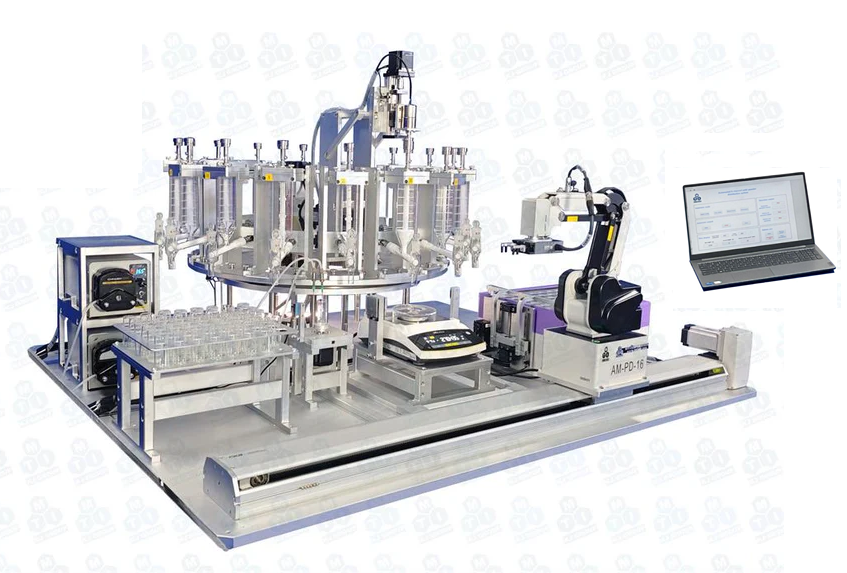

AM-PD16R is an automated powder-dispensing system for high-throughput and autonomous experiments in the condensed phase. This compact, glovebox-friendly unit is programmable via an LCD touchscreen and compatible with various types of powder quickly and accurately up to 100 g ± 1 mg. The modular design can be used solely for 16 samples per batch with different composition. It can fit an automated MTI materials preparation system for autonomous experiments for AI driven material science. The free software advances instrumental communication, data acquisition, and logging into a database.

SPECIFICATIONS

Power
  • 208~240VAC, 50/60Hz, 3 kW
Material Feeding System
  • Sixteen (16) 500 ml raw material containers with mechanical stirring
  • Sixteen (16) glass material feeders
Feeding Capacity
  • > 10 mg
  • < 100 g
Feeding Resolution
  • 0.1 mg
Feeding Accuracy
  • 1 mg
  • Note: accuracy may vary upon particle sizes, powder aggregation,
Sample Holder
  • Plastic tray with six (16) 30 ml plastic containers
Process
  • A laptop computer and software are included for operation
  • Program compositions for each sample.
  • Place the sample tray with 16 empty plastic containers
  • The robot arm will pick up a container and put it on the precision balance
  • The rotary holder with 16-element glass feeder will dispense powder into the container as programmed
  • Once each composition is finished, the robot arm will pick up the container and place it on the tray.
Compliance and Warranty
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost
  • 1-year warranty with lifetime support
Optional



×

Dimension:

  • 1000mm (L) x 600mm (W) x 800mm (H)

MTI offers a One-Year limited warranty for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
Manufacturer Part Number:
