Complete CIP Die Set ( 30 mm ID. 330 Mpa Vessel) for Cold Isostatic Press, - CIP20-DIE

Complete CIP Die Set ( 30 mm ID. 330 Mpa Vessel) for Cold Isostatic Press, - CIP20-DIE

Out of stock

$2,595.00 USD
$2,595.00 USD
Sale Email for Lead Time

SKU: CIP30D300
View full details
CIP20-DIE is Complete CIP Die Set (Max.278 Mpa Vessel) for 24Tons Cold Isostatic Press. It has a 30mm ID x110mm hydraulic chamber made by ultra-strength alloy, which can provide isostatic hydraulic pressure up to 330 MPa via a 24Thydraulic press. It is an excellent tool for the material research lab to prepare high-density compound sample at easy.

Specifications:
Pressure Vessel Size
  • 30mm Dia. x 110mm Height (pressing die cavity)
  • Max sample height: 60mm
  • Hydraulic oil volume (with sample loaded): 40mm distance to the top edge.
  • Made of high strength alloy with stainless steel protective jacket
Ma. Hydraulic Pressure in Chamber 330 Mpa ( 43500 PSI)
Hydraulic Machine optional 24 T
Operation Temperature 10 - 40°C
Maximum pressure holding time 8 minutes (The time starts from the press reaches the target pressure value and ends by releasing the pressure)

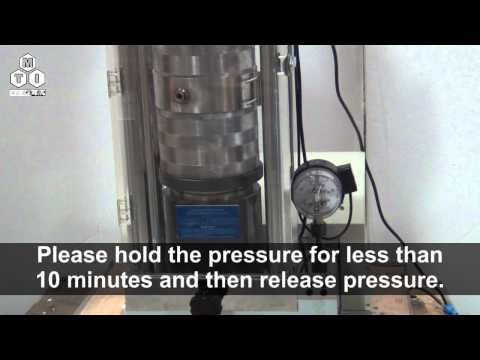

Operation Video and Instructions
Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  • Pic. 1  Pic. 2 Pic. 3
Warning
  • Never let the press hold the target pressure be longer than 8 minutes,
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period.
  • Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing
  • If you order the die only and using your own press machine, , MTI is not resposnible for the safety


Packing List:
Name Qty
1 CIP pressing die 1 set
2 Black Rubber Rings O.D (30mm) 1 pc
3 Pressing oil 1 bottle
4 Hex-socket wrench (for top pressing die and degassing) 1 pc



×

Net weight:

  • 26 lbs

Shipping Weight & Dimension:

  • TBD

MTI offers a One-Year limited warranty with lifetime support(may cause a fee) for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts such as O-rings, crucibles, screws, washers, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
