Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200

Corona (Air Plasma) Surface Treatment System ( 20 or 30 cm width) for Substrate Cleaning by Roll to Roll - MSK-EC-200

Low stock: 1 left

Price: RFQ

SKU: MSK-EC-200

Choose your Variant:



View full details

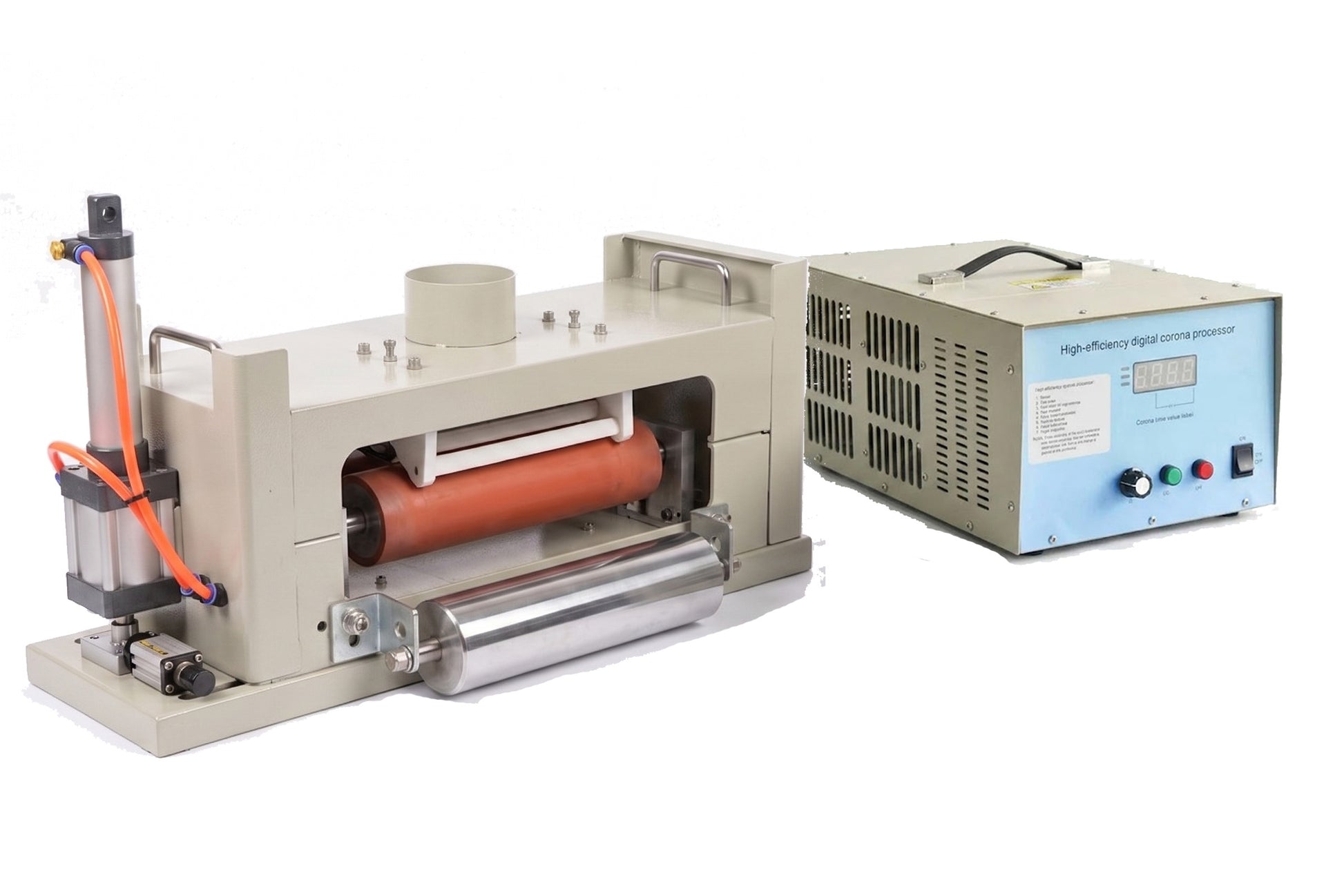

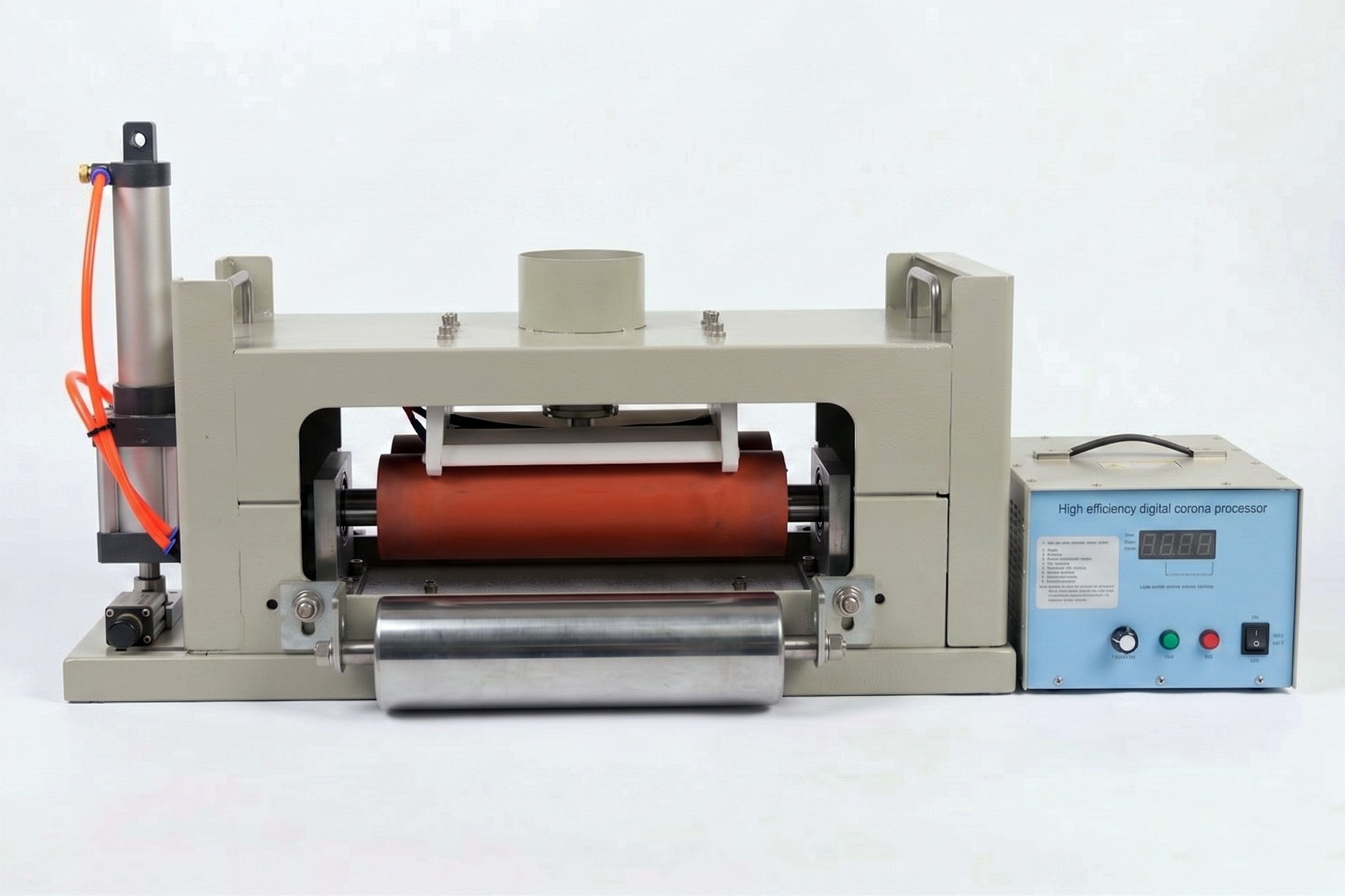

MSK-EC-200 is a corona (also called Air plasma) treatment machine that is mainly used for the pre-processing of various cast film substrates. This device adopts a ceramic roller for discharging electrodes, it is capable of processing conductive materials such as copper foil, aluminum foil, and others. This device uses high-frequency and high-voltage electric power to generate corona discharge between the electrodes and produce low-temperature plasma, thereby modifying the polarization of the surface of the conductive foil. Such a technique can improve the adhesion of the substrate as well as the coating quality. It is widely used for materials modification, grafting, casting coating, ink printing and etc..

SPECIFICATIONS:

Feature
  • Used for the pre-processing of various substrates. for better coating
  • Uses high-frequency and high-voltage (3kV) electric power to generate corona discharge between the electrodes and produce a low-temperature plasma
  • Improves the adhesion of the substrate as well as the coating quality

Working Voltage

 220 VAC ± 10%, single phase 50/60Hz
110V version will be available with 3000W transformer at the extra cost

Working Frequency

 8KHz - 21KHz

Max. Power Consumption

2 KW

Max. Treating Width

200 or 300mm width selectable

Safety Measures
  • Built-in overload limits for the input voltage, short circuit or open circuit on output, ground, etc.
  • Security alarm in case of accident/error occurs.
  • Equipped with a 100 mm diameter vent port, it can be connected to the pipeline and eliminate any generated ozone gas during operation.

Gas Pressure Requirement
  • A 0.4 - 0.6 Mpa of air force is required to raise the gap of the cleaner.
  • Air compressors and fittings are not included. Please click here to order or order from your local hardware store. Gas/Air tube size is 6.

Dimension
  • Controller Box: 300mm L x 500mm W x 240mm H
  • Roller Unit: 600mm L x 320mm W x 370mm H

Application Notes
  • The optional roll-to-roll system and coating system can improve the adhesion of the substrate's surface and improve the coating quality. Please contact us for more details.
Warning
  • This equipment must be placed on a flat and stable working platform.
  • Store in a dry environment, avoid moisture and rain.
  • This equipment must be grounded during operation.
  • Ozone will be generated while the equipment is running, be sure to evacuate the ozone gas.
  • Insolation gloves must be worn during the operation.



×

MTI offers a One-Year limited warranty with lifetime support(may cause a fee) for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts such as O-rings, crucibles, screws, washers, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
