• Voltage: 208 - 240 VAC, single phase, 50/60 Hz
• Power consumption: 4 KW  ( 30 A breaker )
• Power cable and plug is included

• The electric servo motor provides a testing force up to 10 metric Tones
• Force accuracy : +/- 1 % .
• Displacement range： 10 - 800 mm
• Displacement accuracy： 0.001 mm
• Speed adjusting range: 0.00025 mm/s --- 0.025 mm/s
• Speed accuracy: <= 1%
• Sample clip: Manually tighten with a sample from 6 mm to 12 mm diameter

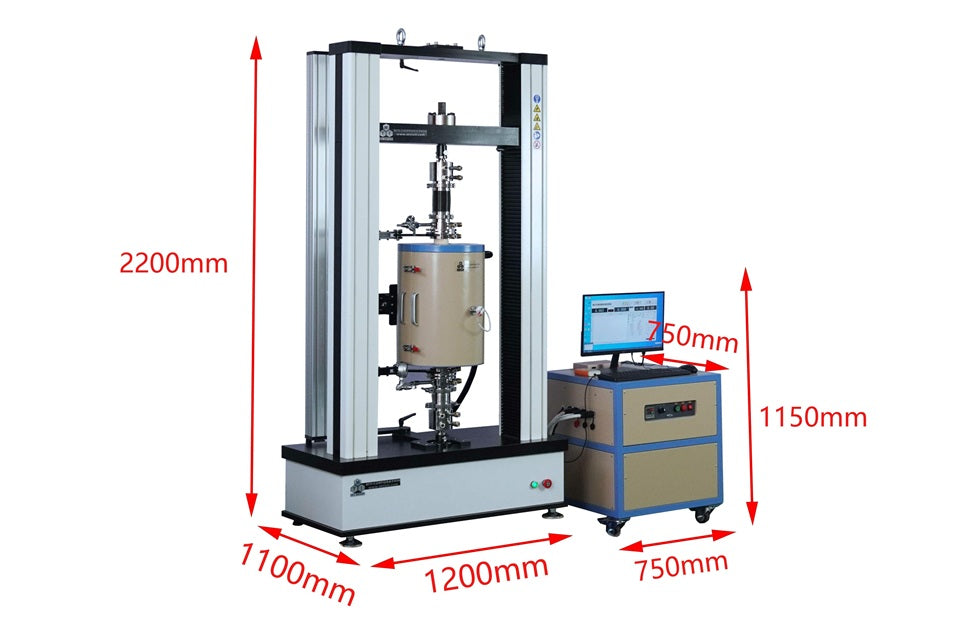

• Working Space: 420 mm width x 600 mm Height

• The bottom of the machine houses a split tube furnace, which can heat the sample to 1500 ºC Max.
• Heating element:  MoS2
• Thermal couple:  B type
• The temperature controller is  programmable with +/- 1ºC accuracy, which is in a separate box unit with two independent controllers
• The uniform temperature zone is 40 mm within +/- 3 ºC

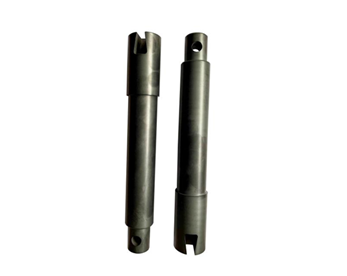

• Sample fixture （ calmp ) is available according customer size and shape
• The two ends of the sample fixtures are cooled by a circulating water chiller.  16 L/m water chiller is required
• The air-tightening and vacuum testing system is available upon request at an extra cost.

• One 17" laptop computer is included to program the machine and furnace with software, including:
• Tensile or compressive speed and force
• Heating temperature, heating rate, and dwell time
• Display tensile or compression curve
• Store all testing data in a computer

Compliance

• CE Certified
• NRTL certification (UL61010) or CSA certification is available upon request at extra cost.
