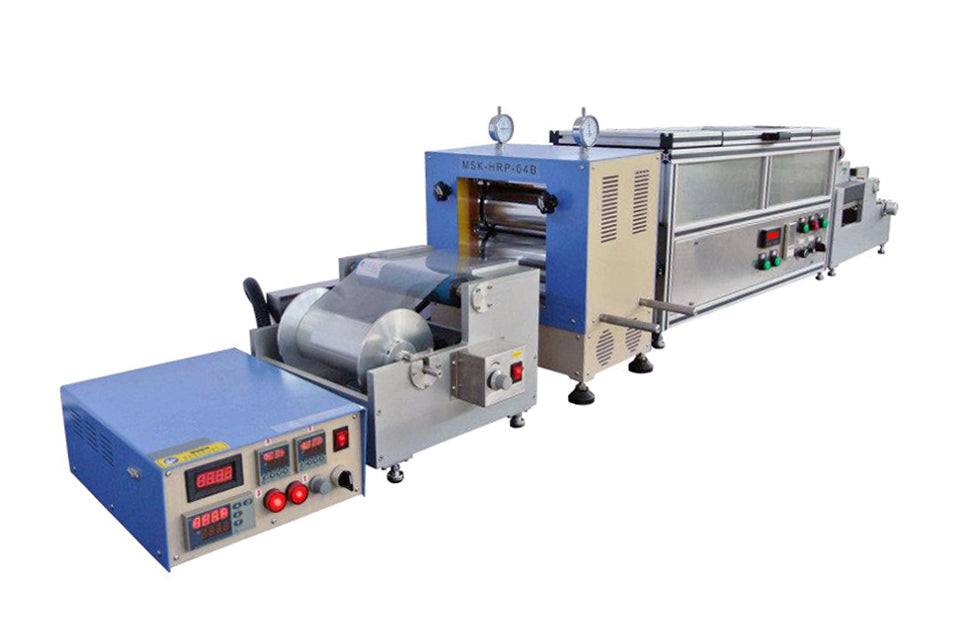

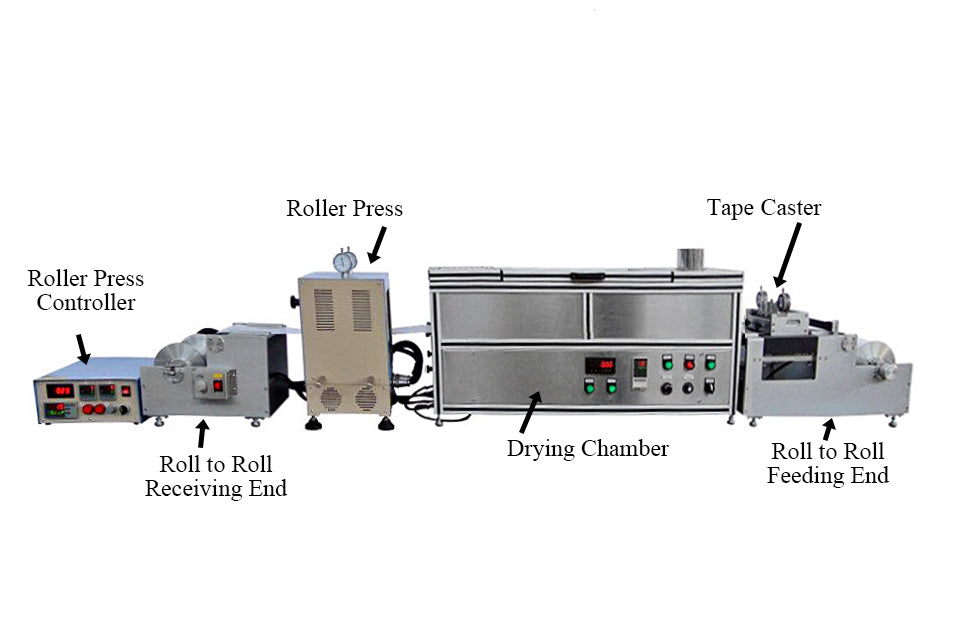

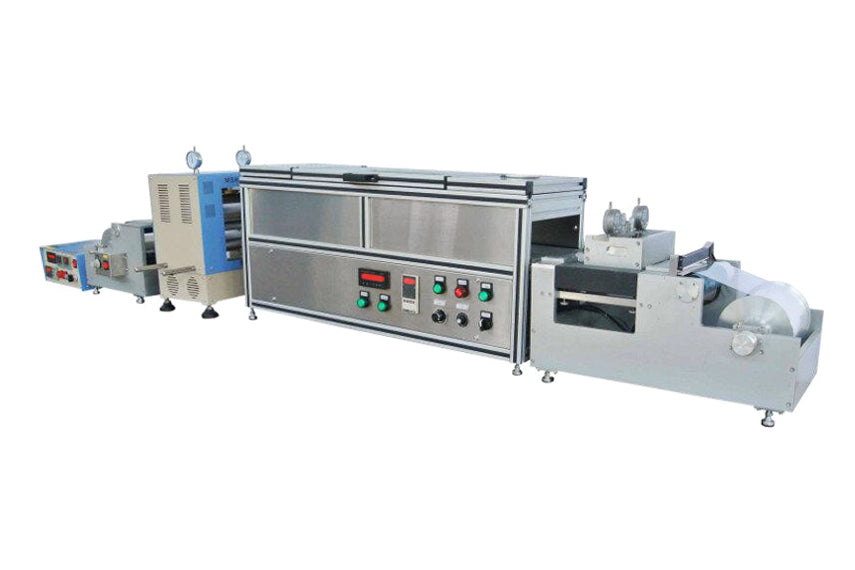

MSK-AFA-HRP-150 is a benchtop roll-to-roll electrode coating system. Such a system features electrostatic dust remover for a particle-free coating environment. The calendar with pressure readings allows thin films to be densified right after the bake-out. The roll-to-roll fashion enables the continuous treatment process: substrate feeding, tape casting, bottom heated drying, roll pressing, reeling the processed films. It is ideal for coating applications such as lithium-ion battery electrode slurry, solid-state electrolyte film, and ceramic film research.
SPECIFICATIONS
|
Features
|
- R2R fashion enables automatic substrate feeding and receiving
- The doctor blade is included for tape casting
- The bottom heated bed provides uniform heating and drying for the coating slurry
- Rolling press with pressure readings, up to 200ºC, 2 tons force
|
|
Power
|
- Hot Rolling Press: 208 – 240VAC, 50/60Hz, single phase, 1.8 kW
- Roll-to-roll Coating: 208 – 240VAC, 50/60Hz, single phase, 1.2 kW
|
|
Coating Method & Precision
|
- Tape casting is done with a doctor blade on a flat marble platform
- Doctor Blade Coating technique (click the picture on the left to see details)
- Coating Thickness Precision: 0.01 mm
- One 150mm blade is included. MSK-AFA-HRP-150 can take a blade up to 180mm wide.
|
|
Coating Performance
|
- 150 mm with an included doctor blade.
- Max. coating width: 180 mm with an optional doctor blade.
- Max. substrate width: 188 mm
- Max. substrate roll diameter: 80 mm
- Speed: 2 - 100 mm/s adjustable
- Thickness: 0 - 5 mm adjustable
- Max. Coating Length: Depending on the coating and substrate thickness. (The slurry consumption)
|
|
Drying Chamber
|
- 90 °C Max bottom heating bed
- The casting flatbed is enclosed by a 1000mm long drying chamber. A 1 kW heating plate enables continuous-flow heated circulation through the drying chamber.
|
|
Static Control & Dust Removal
|
- A destabilizing bar for neutralizing the static of the substrate material.
- Air curtain (8 mm width, 180 mm long) for dust removal (Air pressure: <10 psi)
|
|
Heat able Roll Pressing System
|
- Effective calendaring width: 200mm
- High strength hardening steel with hardness HRC > 52 (Attention: It is not suitable for calendaring materials with HRC > 45)
- The Roller surface is plated by Cr for anti-corrosive property
- Roller Size: 96 mm Dia. x 220mm W
- Temperature: 200 °C max.
- Pressure Up to 2T
|
|
Rolling Pressing Performance
|
- Roller Gap: 0 - 1.8 mm adjustable
- Dial Gauge Accuracy: 0.01mm
- Pressure: 0 - 2000 kgf (Note: the actual calendaring force is dependent on the material physical properties such as hardness and thickness. The rolling gap thickness will also affect the applied force.)
|
|
Roller Heating System
|
- Two digital temperature controller with 30 segments programmable for control two rollers separately
- Max Temperature: 150 °C suggested (200°C maximum)
- Max Heating Rate: 4°C/minute
- Power of Heating Elements: 1600 W
- Temperature Control Accuracy: ±5 °C
|
|
Compliance
|
- CE Certified
- NRTL or CSA certification is available upon request at the extra cost.
|
Options
|
- 100 mm slot die head with a syringe pump is available optionally for 5-micron thin film coating (click Pic.1)
- Slurry Delivery: You may use Precision Peristaltic Slurry Pump for continuous slurry delivery during the roll to roll coating process.(pic,2)
- R2R Air-plasma surface cleaning is available upon request Pic.3-4
 Pic. 1  Pic. 2  Pic. 2  Pic. 4
|
| Application Notes |
| Graphite Slurry:
|
Slurry Material : H2O = 40:60 wt |
| Slurry Material: |
95.5% MCMB, 2.25% CMC, 2.25% SBR |
| Viscosity: |
5000 - 6000 mPa·s @ 22 °C
|
| Doctor Blade Thickness Setting: |
0.1 mm |
| Substrate Feeding Speed: |
3 mm/s |
| Drying Chamber Temperature: |
80 °C |
| Measured Dry Film Thickness (DFT): |
0.065 mm (before Hot Rolling Press) |
| Thickness after Hot Rolling Press: |
0.043 mm (@ 80°C with 0.04 mm clearance setting) |
| Uniformity: |
±0.002 mm (along length direction) |
|
