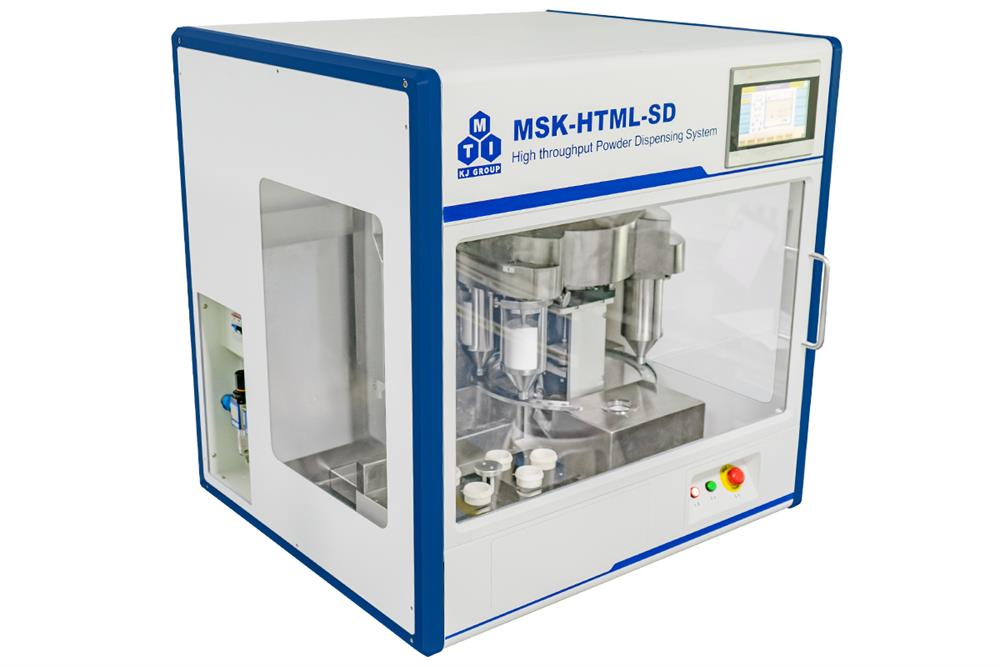

5-Channel Solid Powder Dispenser with Precision Scale for High Throughput Preparation - MSK-HTML-SD

5-Channel Solid Powder Dispenser with Precision Scale for High Throughput Preparation - MSK-HTML-SD

Minimum Order: $20 (equipment), $100 (crystals)

Price: RFQ

SKU:

Choose Your Variant or Type in Any Add-Ons:



View full details

MSK-HTML-S is a compact version high throughput automatic dispenser with 5 dispensing tanks for solid powder distribution of up to 6 samples. (Sample number could be customized).
The application interface allows the user to make dedicated programming steps for preparing samples of various weights and composition ratios with 2 mg resolution.
The integrated dispensing mechanism provides a fully automatic, unattended, reproducible dispensing process.
It is an ideal tool for powder sample preparation in high-throughput alloy and ceramic research (such as solid electrolyte development in Lithium-ion batteries).
MTI has granted the patent 2019SR0892401 for the High Throughput Automatic Powder Dispensing System MSK-HTML-S since July 2019.

SPECIFICATIONS

Features
  • Automated dispensing with accurate and reproducible results. This eliminates human variation and user fatigue which can be the major causes of experimental variations.
  • Capable of preparing 6 samples of various compositions (up to 5 sources) in one speedy, accurate, and efficient dispensing workflow!
  • A user-friendly interface and a simple PLC control system enable hassle-free programming.
  • XYZ triaxial module platform station for the sample container transportation
Power
  • 208~240VAC or 110VAC, 50/60 Hz, single phase
  • 0.8 kW
Dispensing Capability and Accuracy
  • 20 mg - 13,000 mg scale measurement range with an accuracy of 2 mg.
Container Size
  • 5 source containers, each with a capacity of 425 mL.
Powder Dispensing
  • Fully automatic, fast, accurate solid powder dispensing
  • Suitable power type: Free-flowing, fluffy, granular, electrostatically charged
  • The precision scale ensures accurate dispensing.
Movement
  • XYZ triaxial module platform station with travel accuracy +/- 0.01 mm
    • X-axis: single guide slider module, the working distance is 420mm, built-in Servo motor;
    • Y-axis: double guide slider module, the working distance is 270mm, built-in Servo motor;
    • Z-axis: rail slider module, the working distance is 140mm, built-in Servo motor.
Dispensing Mechanism
  • Each container tube will be moved to the dispensing station via an XYZ motion moving station.
  • The sample will be dispensed from the sample feeder.
  • After dispensing, the container tube will be moved back to the loading station.
  • Please watch the Demo Video for more details
  •
Sample Carousel
  • 6 sample containers, each with a capacity of 30 mL.
Air Source
  • An inert Gas Tank or Air Compressor (0.5~0.8Mpa) is needed for the machine operation, please purchase separately.
  • Attention: If a gas cylinder is used instead of air compressor (pic2), a two-stage pressure regulator (pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
  • Click here to learn the installation of a gas regulator.
Pic 1  Pic 2
Clean Room Classification
  • 1,000,000
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost.



×

Dimension:

  • 800 mm L x 740 mm W x 820 mm H

Weight:

  • 110 Kg

MTI offers a One-Year limited warranty for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
