Hi-Pressure Super Alloy Tube: 100 OD x 82 ID x 1200 L (mm) w/ CF Flanges, 1100oC Max. - Tube-HP-100-82

Hi-Pressure Super Alloy Tube: 100 OD x 82 ID x 1200 L (mm) w/ CF Flanges, 1100oC Max. - Tube-HP-100-82

Out of stock

Price: RFQ

SKU: Tube-HP-100-82

Choose your Variant:



View full details

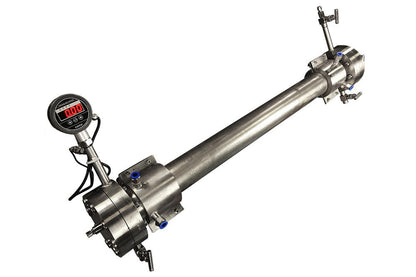

Ni-based superalloy tube vessel (100 mm O.D x 82 mm I.D x 1200 mm L). It can be used under ultra-highly oxidizing and inert gas atmosphere up to 1100°C to process special compounds. It is a consumable part of OTF-1200X-HP-III, which is a compact HIP (hot isostatic pressure) furnace for researching the new generation of materials at low cost.


Specification:

Tube Structure
  • 100 mm O.D x 82 mm I.D x 1200 mm L
  • CF type flanges with copper O-ring
  • Two High Pressure / High Vacuum needle valves are included
  • Water cooling rings are installed on two ends of the tube.
  • 1/2 NPS port  is built in to connect vacuum gauge or high pressure gauge
Inside Diameter:           82 mm
Tube Length:                             1200 mm
Max.Working Temperature
without Load:   		         1100 °C
Working Pressure &
Temperature:
Maximum pressure inside the tube
 Heating temperature
Max.  5 Mpa   800°C
Max. 3 Mpa   900°C
Max. 1.5 Mpa   1000°C
Max.  1.0 MPa   1100°C (for <1hr)
Vacuum level   10 x E-5 torr by turbopump
Warning:
  • Please set up a pressure alarm point in the digital pressure display before the operation
  • Must install a pressure regulator on the gas cylinder to increase pressure gradually.
  • Service-life design for 2,000 hours at 800oC. The high-pressure vessel is a consumable part, please order replacement once found deformation
Pressure Gauge (optional)
 Installation:
  •
Water Cooling
  • There is four water cooling bracket blocks, two on each side.
  • Two water cooling ports on each block.
  • Illustration of linking all four half water cooling blocks in series.
  •
Option Water Cilller
  • Must have water chiller while heating this tube, or it will cause damage to the flanges.
  • A water chiller is required, but not included, please click to order at extra cost.
Recommended
Optional Tool

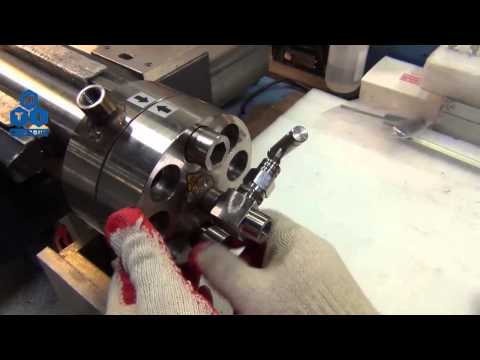

Operation Video
Attention:
  • In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please browse our crucible boat.
×
