1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB

1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB

Minimum Order: $20 (equipment), $100 (crystals)

Price: RFQ

SKU:

Choose Your Variant or Type in Any Add-Ons:



View full details

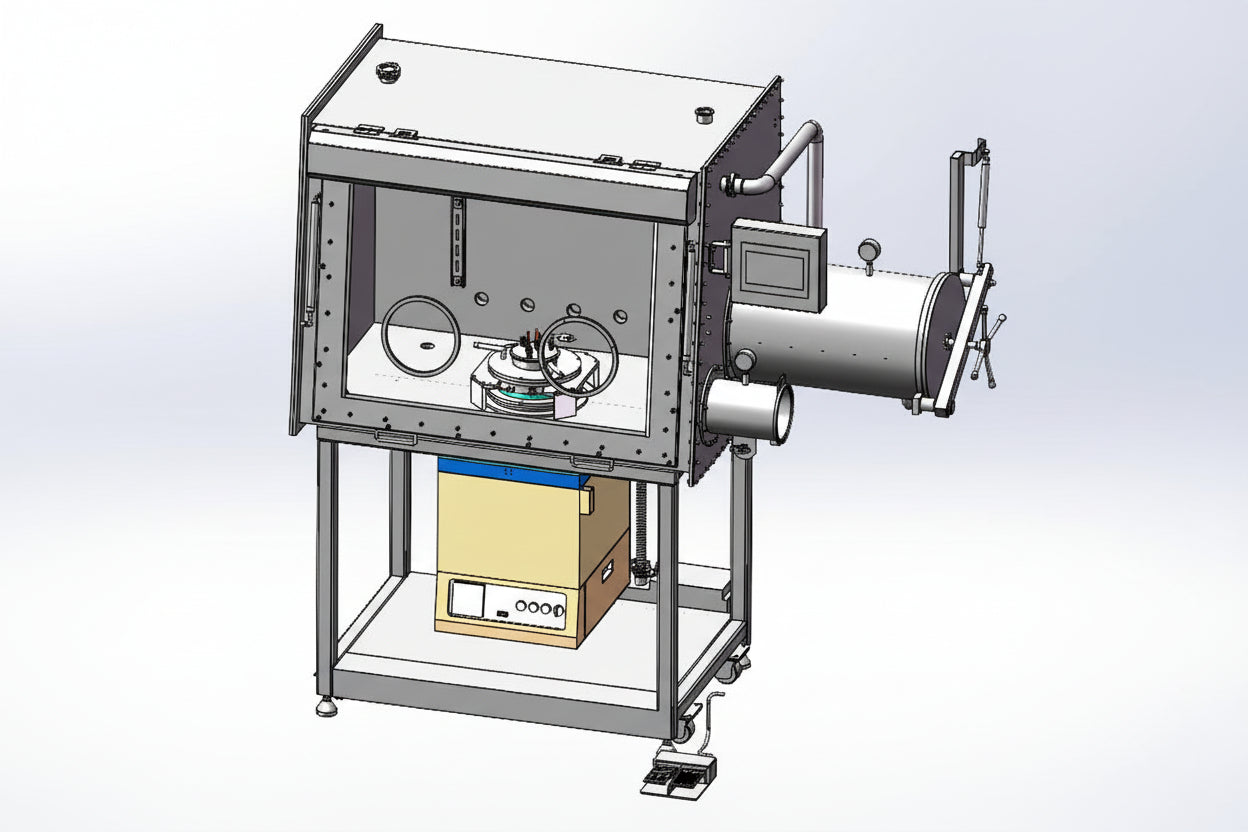

VEF1200GB is a molten salt reactor integrated with a glove box for air-sensitive materials.

Features

  1. 1100°C maximum working temperature
  2. Hermetic chamber for atmosphere control
  3. Choices of Ø6 mm three-electrode system
  4. Gas inlet/outlet and in-situ temperature measurement

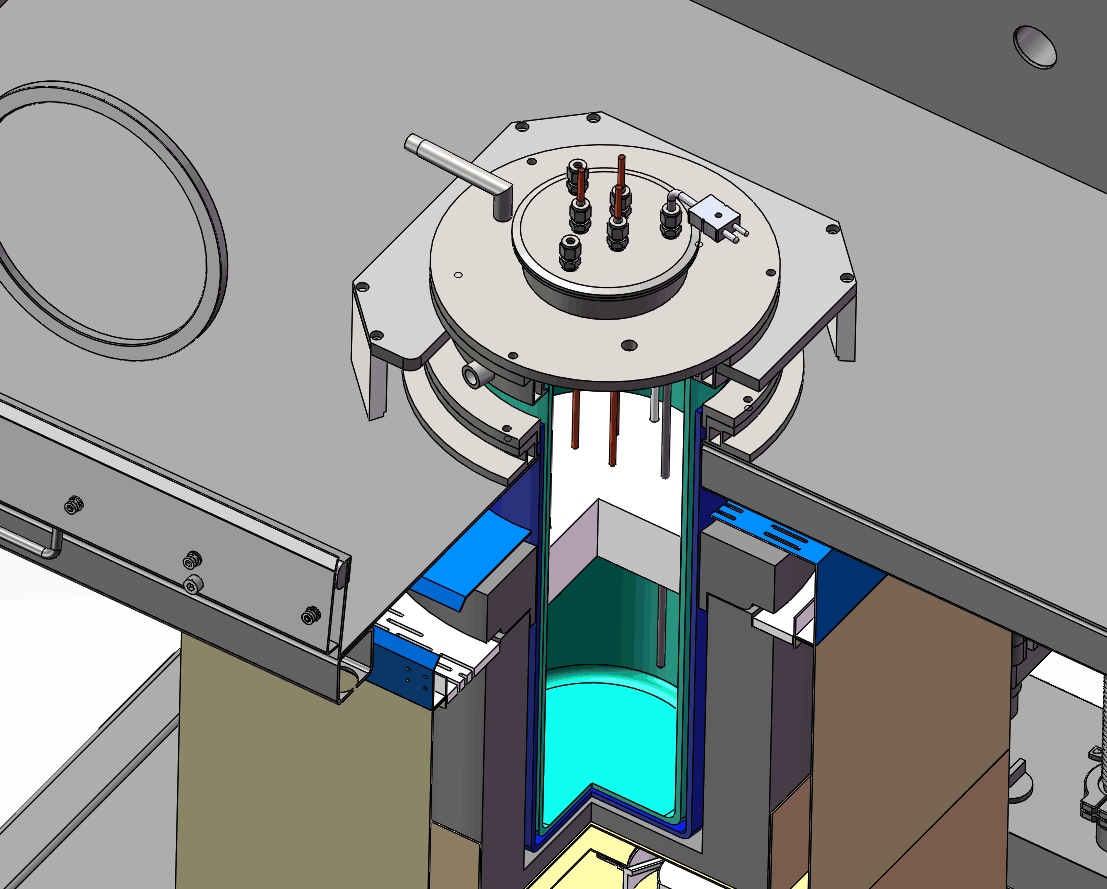

  5. Dual quartz chamber for safety and glove box integrity.
  6. Effective heating area Ø200×245 mm
  7. Recommending sample size about < 3 liters.

SPECIFICATION:

Power
  • Molten Salt Reactor
    • 208-240 VAC, 1 phase, 50/60 Hz, 30 A
    • 4 kVA
  • Glovebox
    • 120 VAC, 1 phase, 50/60 Hz, 15 A
    • or 208-240 VAC, 1 phase, 50/60 Hz, 10 A
  • Power cord is included. Power plug may not be included.
Furnace
  • VBF-1200X top-loading box furnace
  • Working temperature
    • 1100 °C continuous.
  • Heating rate: ≤20℃/min
  • Heating Zone: Ф240 * 245mm   ( 11 Litter）
Quartz Chamber
Flanges
  • Dual-tube flanges with water cooling
Temperature Controller
  • PID automatic control and auto-tune function
  • ±1°C accuracy
  • 50 programmable segments for precise process
  • Built-in interlocks for overheating and thermocouple failure
Thermocouple
Crucible
Electrodes
Thermal Block
Pressure
  • <3 psig
Glove Box
  • VGB-6 single chamber glove box to make moisture and oxygen < 1 ppm
Water Chiller (Optional)
  • Water cooling is required to cool the vacuum flange.
  • MTI recommends getting a KJ5000 recirculating water chiller or equivalent
Compliance
  • CE Certified
  • NRTL Certification is available upon request; additional charges will apply







×

Product Dimensions 2000 mm L x 1000 mm W x 1880 mm H (79" x 40" x 74")

Shipping Dimensions 85" L x 45" W x 91" H

Shipping Weight 1720 lbs

MTI offers a One-Year limited warranty for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
Manufacturer Part Number:

Related Products

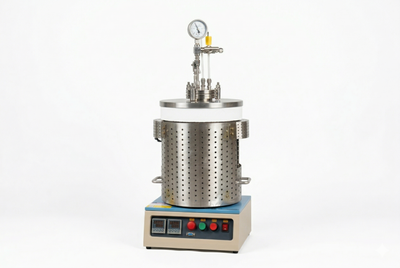

Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS
Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS
RFQ

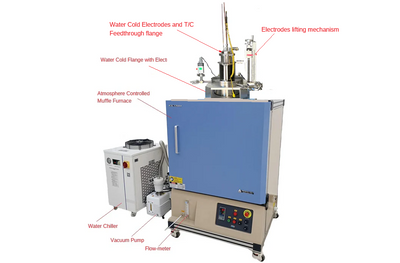

1300oC or 1700°C Molten Salt Electrolytic Furnace with 8" Cubic Atmosphere Controlled Heating Chamber - VEF1700
1300oC or 1700°C Molten Salt Electrolytic Furnace with 8" Cubic Atmosphere Controlled Heating Chamber - VEF1700
RFQ

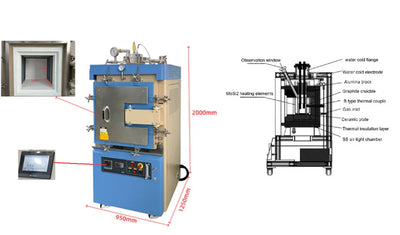

1600°C Molten Salt Electrolytic Furnace with 8"ID x 15"H Graphite Crucible - VEF-1600L
1600°C Molten Salt Electrolytic Furnace with 8"ID x 15"H Graphite Crucible - VEF-1600L
RFQ

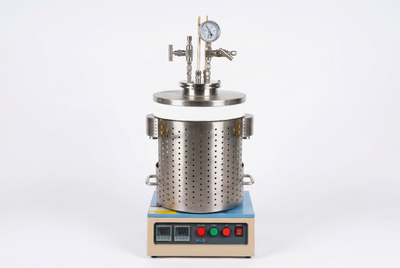

Three-electrode Molten Salt Reactor with a 4" Quartz Vessel - VBF-1200S-MS
