5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W

5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W

Out of stock

Price: RFQ

SKU: YLJ-1220-W

Choose your Variant:



View full details

MSK-1220-W is a heavy-duty electric rolling press with 5.5 KW, which is designed for rolling metallic wire from ≤ 10 mm rod or bulk (< RC 50) to 1 mm diameter, such as Aluminium alloy, Copper, Nickel alloy and stainless steel, etc. This device is one of necessary for wire preparation of metallic wire for AM ( Click here to see details)

SPECIFICATIONS:

Power
  • 208- 240V Three Phase, 50/60Hz
  • 5.5 KW AC motor (7.5 horsepower)
  • 380VAC, three-phase is available upon request
  • AC Motor
Rollers
  • The rollers surface consists of a series of grooves with a diameter of 10 mm to 1 mm, which will press a large rod into a thin wire via one by one pressing
  • The automatic winding roller is build
  • Roller materials: Hardening DC53
  • Roller size: 120 mm dia x 200 mm width (~4.7" Dia x 8" width)
  • Hardness: HRC 63-65
  • Rolling thickness: 1 - 11 mm adjustable
Rolling Speed
  • 0 - 6 mm / second adjustable by 22 segments
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost

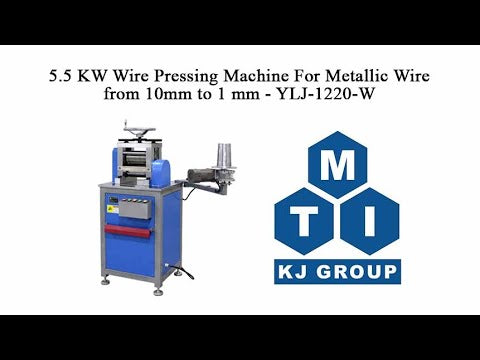

Operation Video & Instructions
Application Note
  • Never roll materials with hardness > 50HRC
  • The thickness for each time pressing is dependent on material thickness. Harder material shall be less press thickness, which customer shall test by themselves for the best parameters
  • For some material, you may need to anneal it by furnace after each rolling to avoid work hardening



×

Overall Dimension:

  • 520mm L x 620mm W x 1470mm H

Net Weight:

  • 480 kg

MTI offers a One-Year limited warranty with lifetime support(may cause a fee) for this product.

The MTI One Year Limited Warranty does NOT cover

  • Consumable parts such as O-rings, crucibles, screws, washers, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
